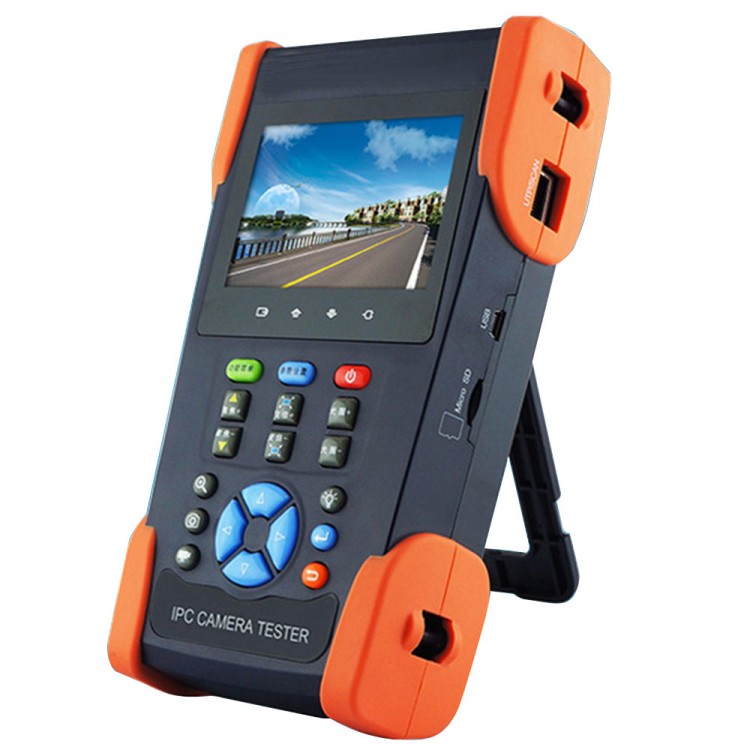

3.5" Touch Screen Monitor Onvif IP HD 1080P Analog WIFI Video Camera CCTV Tester IPC-3500 Plus H

Tags: Camera Video Tester

Availability: Out Of Stock

  • Price:$208.83
  • Price in reward points: 2088 Reward Points: 21
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $204.65 $200.48 $194.21 $185.86 Contact US
Quantity:

3.5" Touch Screen Monitor Onvif IP HD 1080P Analog WIFI Video Camera CCTV Tester IPC-3500 Plus H

Features:

- This is the version IPC-3500 Plus H with function H, H means TVI camera test
- 3.5 inch touch screen 480*320 resolution NEW
- Capacitive touch screen ,OSD menu,
- Touch screen and key operation
- Support A(AHD)/D(CVI)/H(TVI) (optinal) camera test .image snapshot ,video record and playback ,zoom, NEW, based on IPC-4300, Only TVI for this version.
- Built-in WIFI, wireless network camera test NEW
- Support 1080P camera
- SDI camera tester (Optional) SDI digital video surveillance testing, support resolution:1280x720P 25Hz/1280x720P 30Hz/1280x720P 50Hz/1280x720P 60Hz/1920x1080P 25Hz/1920x1080P 30Hz/1920x1080I 50Hz/1920x1080I 60Hz
- Digital camera image test and video image zoom, record, screen snapshot, Photo viewer and playback
- BNC input& output , both IP & Analog images could be zoomed in 1~4times and output
- ONVIF/WIFI ,ONVIF PTZ control ,,built in WIFI to receive the network image and data
- If IP camera manufacturers can offer Video Management Software that compatible with mobile phone or tablet PC, install the Video Management Software in the tester enable the tester to display IP camera image by IP camera viewer
- Video screen snapshot ,video recording ,files named and save, easy to find
- Support network PTZ controller (ONVIF)
- MPEG4,H.264, MJPEG/MJPG IP camera image test
- Support 1080P HD video files and MKV/MP4 media files play
- PTZ controller ,Photograph, Video record, Record playback
- Support genuine image display
- Video level meter, Video PEAK lever, SYNC level, COLOR BURST measurement Optional
- O-Optical Power Meter, it can measure the optical power value and fiber loss *(Optional)
- V-Visual fault locator , to test fiber’s bending and breakage * (Optional)
- T-TDR cable test , test cable length and short-circuit * (Optional)
- M-Digital Multi-meter, Voltage, current, resistance and capacitance measuring, continuity testing, diode testing. (Optional)
- Color bar generator, analog video color bar and testing image output
- POE voltage measurement, PING test ,IP address scan, port flashing etc
- Audio in /out
- LED lamp, calculators, music players and other application tools
- Support customers self update software
- Lithium Ion Polymer Battery, working time lasts 8 hours

NOTE: T-TDR cable test, test cable length and short-circuit,M-Digital Multi-meter,O-Optical Power Meter, V-Visual fault locator,A means AHD camera test ,are the optional function for this basic version IPC-4300 Model.


Package List:

- 1 x IPC-3500 Plus H
- Accessories
