3.5inch 4MB 3.3V 5V TFT Touch Shield with 4MB Flash for Arduino and Mbed DIY

Description:

3.5 "TFT touch screen, supports for Arduino and mbed, provides 3.5" TFT LCD display
Resistive touch screen, built-in Flash flash memory and SD card external expansion.

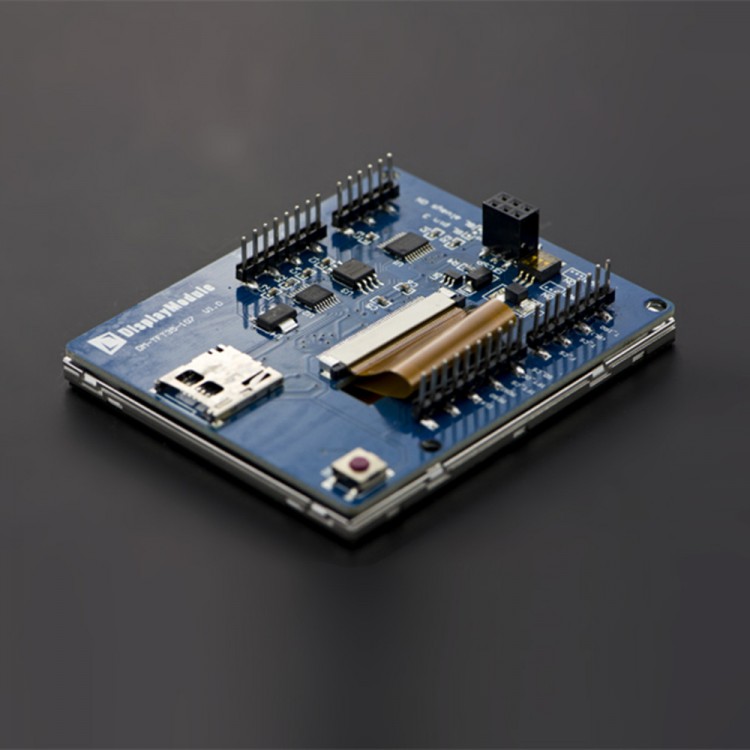

Use ILI9341 display control chip and 4MB flash memory, so that the transmission rate is greatly improved.For Arduino can sense a touch on the screen coordinate information.In addition, the back of the expansion board with a micro SD card slot, the screen can be directly call the picture to show.

The display greatly enhance the interactive ability of for Arduino, color and touch with ordinary black and white screen feel completely different!

Parameters:
- Model: DM-TFT35-107
- Screen size: 3.5"
- Operating voltage: or 5V 3.3V
- Screen resolution: 240x320
- Communication interface: SPI
- Flash: 4MB
- Operating temperature: -10~70 degrees Celsius
- Support micro-SD card
- Supports for Arduino and mbed
- Size: 65.14*78.10 (W*H) mm
- Available field: 52.56*70.08 (W*H) mm
- Weight: 56.4g

More information:  Click here
Arduino base:  Click here
Schematic diagram:  Click here
Dimension chart: Click here
Chip information:  Click here
2D model:  Click here
Application: Click here

Package Included:
- 1 * 3.5" TFT Touch Shield
