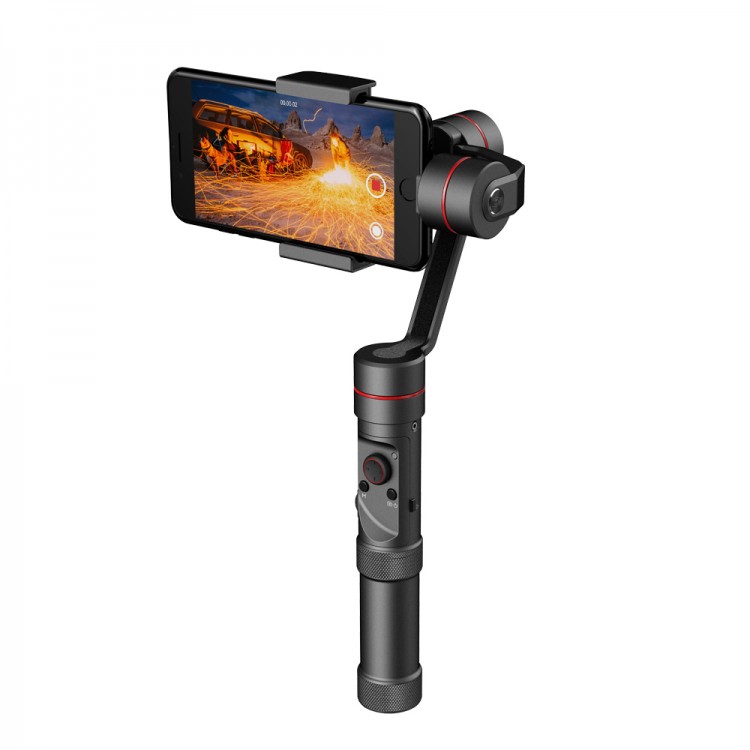

3.6V 4.3V Smooth 3 Handheld 3-Axis Mobile Smartphone Stabilizer Gimbal Clamp

3.6V 4.3V Smooth 3 Handheld 3-Axis Mobile Smartphone Stabilizer Gimbal Clamp

Product Description:
- Smooth 3,Make your phone camera PRO.
- Innovative Handwheel for Precise Camera Settings
- Designed with a unique handwheel on its control panel, Smooth 3 brings various camera settings, including exposure compensation, ISO, white balance, shutter speed and focusing, to your fingertips, allowing real-time precise control of both the camera and stabilizer.
- focalize,exposure settings,adjust ISO
- Unprecedented Max. 260g Payload
- Empowered by the 5th Instune Algorithmic System which realizes 40% increase in motor torque and 35% improvement in respond speed compared to earlier versions, the Smooth 3 sets up a new benchmark for the industry supporting a max. payload of 260g. This not only significantly improves its system stability, but also allows more extensive phone shooting applications with multiple add-on options, such as external lens, portable lamp or microphone etc.
40% motor torque increase
35% respond speed increase
260g max. payload
- Real-time Mobile Charging thru Gimbal
A 5V/1000mA power output port on the gimbal allows convenient real-time charging to the smartphone, enhancing both the portability and practicability of phone-shooting to utmost extent.
Record-breaking 14-hour Continuous Runtime
- Smooth 3 comes standard with one 26650 rechargeable battery, supporting unprecedented ultra-long continuous runtime up to 14 hours. Meanwhile, the Micro USB power port at the side of the handle allows convenient charging through direct power source with a USB port.
USB convenient charging
14 hour continuous runtime
26650 rechargeable battery
- Comprehensive APP with Multiple Intelligent Functions
- The newly upgraded smartphone APP - ZY Play - not only allows customized parameter settings for photo/video shooting and gimbal mechanical controls, allowing more subtle adjustments with exposure compensation, ISO, white balance and multi-style filters etc., but further supports multiple intelligent functions, including time lapse, long exposure, panoramic imaging and more , to literally turn your phone into a real filmmaking device.
time lapse,long exposure,multi-style filters
- Innovative 2-way Mobile Clamp
- Elaborately engineered using top-grade aluminum material processed through high-precision CNC machining, all operations on Smooth 3 are guaranteed with outstanding smoothness. The unique 2-way mobile clamp design allows easy switch of mounting direction, either horizontal or vertical, to adapt various application needs.
- One-step Precise Balancing
Designed with a unique telescopic arm featured with detailed scale mark for precise fixing, balance adjustment
- Military-industrial Quality
Elaborately engineered using aviation-grade aluminum material processed through high-precision CNC machining, all operations on Smooth 3 are guaranteed
- Universal Mounting Port to Enhance Creativity
Equipped with an universal 1/4” threaded hole at the bottom, Smooth-Q can be mounted to various photography equipment and apparatus, such as tripod mount, extension rod or suction cup, so you not only can produce rocker-arm footage, but can also make cool time lapse footage with ideal view while it operates with your hands free!
- Direct Firmware Upgrade via APP
The Smooth 3 firmware is subject to constant upgrade via convenient connection with ZY Play, the dedicated mobile APP via Bluetooth connection, to ensure up-to-date performance.

Tech Specs:
- Item     Min.     Standard     Max.     Remark
- Operation Voltage     3.6V         4.3V
- Operation Current     80mA     110mA     6000mA
- Charging Voltage         5V
- Charging Current         2000mA
- Output Voltage         5V
- Output Current         1000mA
- Following Deviation in Static State     ±0.01°         ±0.04°
- Following Deviation in Motion State     ±0.05°         ±0.3°
- Tilt Mechanical Range         320°
- Roll Mechanical Range         320°
- Pan Mechanical Range         360°         Unlimited
- Controllable Tilt Angle     -135°         +185°
- Controllable Roll Angle     -30°         +30°
- Operation Temperature         360°         Unlimited
- Operation Temperature     -10°C     25°C     45°C
- Battery Runtime     8h     12h     14h     Balanced center of gravity
- Charging Time         2.5h
- Valid Payload     75g         260g
- Horizontal Arm Adjustment Range
- Mounting Clamp Supporting Range
- Compatible Models     Smartphones with sizes within 6.0", GoPro Hero3/4/5

TOOLS:
- APPLE
Zhiyun USB drive(Mac OSX)
Calibration upgrade tool(Mac OSX v1.30)
- WINDOWS
Zhiyun USB drive(Windows XP)
Zhiyun USB drive (Windows 7 and above)
Smooth-Q USB drive (Windows 7 and above)
Smooth-3 USB drive (Windows 7 and above)
Tools(Windows v1.3)
- APP
Zhiyun APP(IOS)
Zhiyun APP(android)

User Manual:Click here

Packing List:
- 1 x  Gimbal Stabilizer
- 1 x  Micro USB Cable
- 1 x  User Guide
- 1 x  Storage Bag
