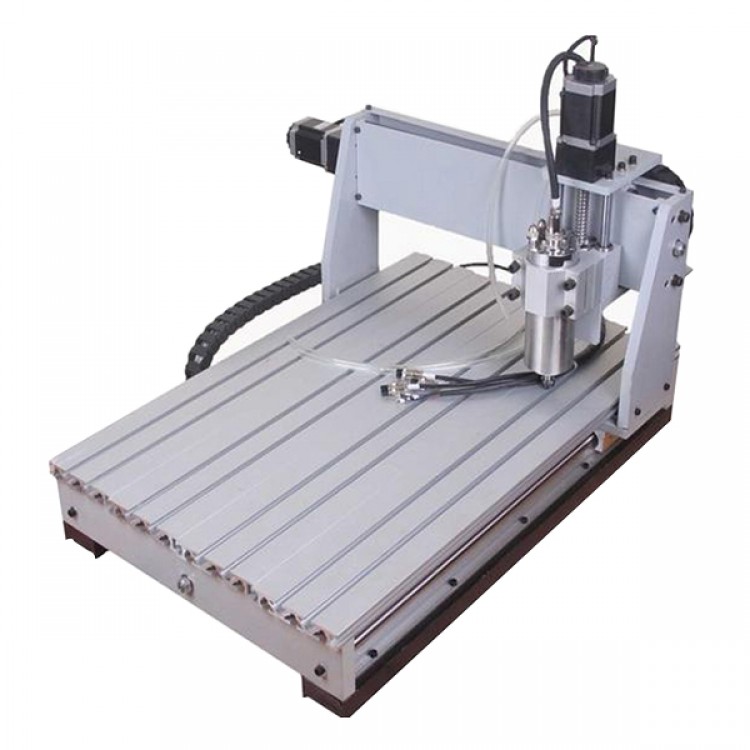

3-AXIS 6040Z-S65J CNC Router Engraver Drilling Milling Machine 220V&110V cmr
  • 3-AXIS 6040Z-S65J CNC Router Engraver Drilling Milling Machine 220V&110V cmr
  • 3-AXIS 6040Z-S65J CNC Router Engraver Drilling Milling Machine 220V&110V cmr
  • 3-AXIS 6040Z-S65J CNC Router Engraver Drilling Milling Machine 220V&110V cmr
  • 3-AXIS 6040Z-S65J CNC Router Engraver Drilling Milling Machine 220V&110V cmr
  • 3-AXIS 6040Z-S65J CNC Router Engraver Drilling Milling Machine 220V&110V cmr
  • 3-AXIS 6040Z-S65J CNC Router Engraver Drilling Milling Machine 220V&110V cmr

  • SKU:26833
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 176
  • Price:$1,759.90
  • Price in reward points: 17599
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $1,724.70 $1,689.50 $1,636.71 $1,566.31 Contact US

3-AXIS 6040Z-S65J CNC Router Engraver Drilling Milling Machine 220V&110V cmr


Machine part parameters:
Pls contact us for shipping fee before buying,item is over 51kg



Effective working travel 580(X)mm*400(Y)mm*65(Z)mm
Shape dimension 870*670*520mm
Max.workpiece dimension 750mm*450mm<90mm
Work table dimension 750mm*480mm
Frame materials hard aluminum alloy 6063 and 6061 the unique and dedicated mold extrusion profiles. let  counterfeiters dwarfs
acceptable material thickness 100mm
Driving units X axis 1605 ballscrew
Y axis 1605 ballscrew
Z axis 1605 ballscrew
Sliding units X axis Dia.16mm chrome plate shafts
Y axis Dia.20mm chrome plate shafts
Z axis Dia.113mm chrome plate shafts
Stepping motor type 57 two-phase 3A 150N.cm
Spindle motor brand new 800W water cooling spindle, 24000RPM
Principal axis collet ER11/3.175 mm/6mm
Repeat accuracy 0.05mm
Spindle precision radial beat acuities 0.03 mm
Control unit triaxial one-piece drive + ring variable power + PWM speed
Carving Instructions G code/TAB files/nc file/NCC files
Communication interface through parallel connection with computer
Software environment Windows xp
Maximum speed 0-4000mm/min
Carving speed 0-2500mm/min (different materials differ)
Machine weight
51KG



Control box parameters:

Operating Voltage
AC110V/AC220V
Control unit
Toroidal transformer + PWM power supply module + TB6560 3axis drive board
Computer connection
on board palrallel port
Command code
G code
Acceptable software
Mach3,EMC2
Protection
Emergency stop button

Machine features:

  • This CNC6040 machine is suitable for industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
  • It can work with various materials, such as: wood, pmma or other plastic, MDF board, native wood, PVC, Acrylic, wood, composite board plywood. and soft metal .like  aluminum, copper and silver. etc.
  • it can used for engraving: advertising signs, PCB, nameplates, badges, seals, bronzing plate, aluminum alloy, acrylic plates, ABS resin double color plate, PVC foaming board, indentation plates, signs, construction models, instrument panels, wooden products, etc.

Package Included:
  • 1 x engraving machine
  • 1 x controller box
  • 1 x water pump for cooling spindle
  • 1 x parallel cable
  • 1 x power cable
  • 1 x tool box and tools
  • 1 x 800W spinle
  • 1 x 1.5KW inverter
