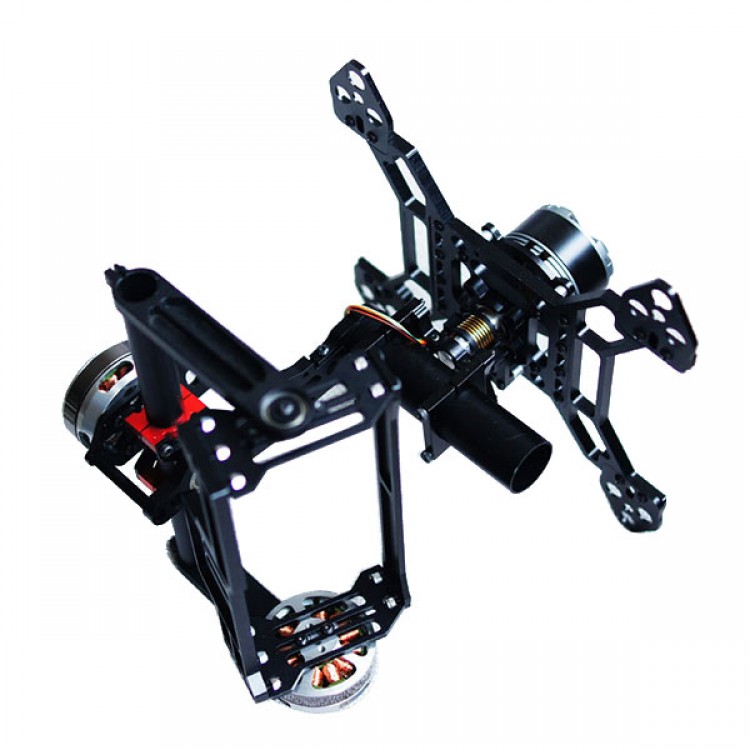

3 Axis Aluminum Alloy Brushless Gimbal Stablizer For GH2 NEX5 NEX7 Aerial Photography

3 Axis Aluminum Alloy Brushless Gimbal Stablizer For GH2 NEX5 NEX7 Aerial Photography


Gravity Adjustment Video Instruction Link,Click Here

 Note: This is a DIY product, which is that  the video instructions for use, if you still don't understand to installed,  please do not choose .

Can Compatible with SONY NEX5  NEX7 A6000 Panasonic GH2 micro-camera series

Don't   support SONY A7 A7S / Panasonic GH3 GH4 / Olympus EM1 and other medium-sized  camera

Features:
- Nex series camera could quick release battery and memory card for outdoor use
- Integrated brushless gimbal design
- Aluminum alloy CNC processing, strong and light weight
- Same suspension size with Z15 gimbal
- 12mm suspension rod picth 155mm

Specifications:
- Weight: 950g
- Power supply: 11-13V, 3S lipo battery
- If use 12V DC regulator, suggest continuous current >3A
- Software debugged, only need adjust gravity center

Using lightweight design;
- The third axis gold-plated slip ring, 360 degree continuous rotation;
- NEX series cameras can be achieved using the quick-release battery and memory  card for easy field use;
- PTZ control panel using a three-axis integrated design, small size, the driving  part is MOS tube, providing greater drive current, using aluminum alloy shell to  enhance heat dissipation MOS tube;
- PTZ using mouth-frame design, strength than the previous generation increased by  more than 30%;
- Full rotation axis symmetrical design, even by force, bearing end uses no  virtual spaces designed to bring the design minimizes vibration.

Package Included：
- Aluminum alloy 3 Axis gimbal frame
- 3 Axis gimbal controller set
- Motor 3pcs
- 6 wire slipring
- Damper rubber ball set

NOTE:
- If you are beginner for the Brushless Gimbal Controller, you need to learn how  to use the Brushless Gimbal Controller first
