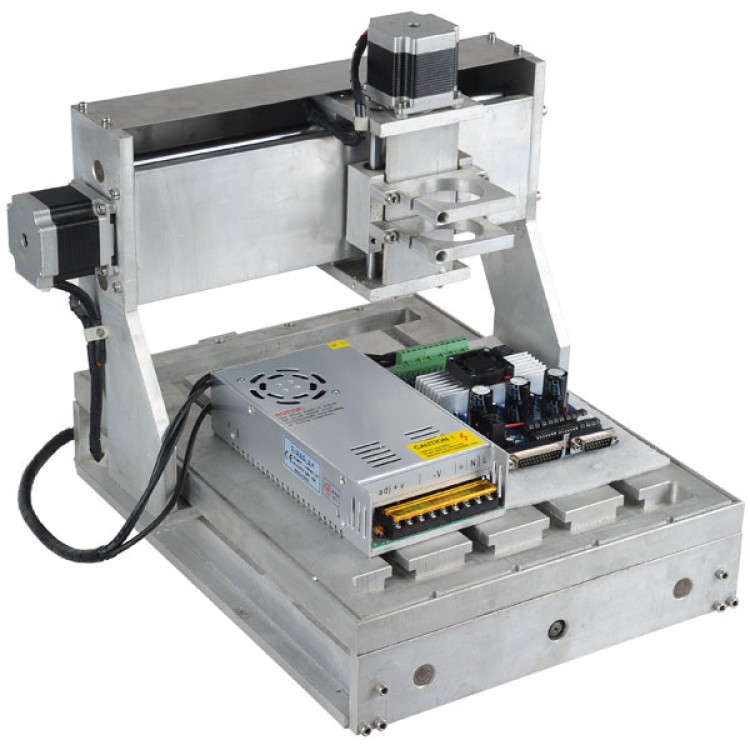

3 Axis CNC 3025 30cm*25cm Diy Router Engraver Drilling/Milling Machine with Driver Power
  • 3 Axis CNC 3025 30cm*25cm Diy Router Engraver Drilling/Milling Machine with Driver Power
  • 3 Axis CNC 3025 30cm*25cm Diy Router Engraver Drilling/Milling Machine with Driver Power
  • 3 Axis CNC 3025 30cm*25cm Diy Router Engraver Drilling/Milling Machine with Driver Power
  • 3 Axis CNC 3025 30cm*25cm Diy Router Engraver Drilling/Milling Machine with Driver Power
  • 3 Axis CNC 3025 30cm*25cm Diy Router Engraver Drilling/Milling Machine with Driver Power
  • 3 Axis CNC 3025 30cm*25cm Diy Router Engraver Drilling/Milling Machine with Driver Power
  • 3 Axis CNC 3025 30cm*25cm Diy Router Engraver Drilling/Milling Machine with Driver Power
  • 3 Axis CNC 3025 30cm*25cm Diy Router Engraver Drilling/Milling Machine with Driver Power
  • 3 Axis CNC 3025 30cm*25cm Diy Router Engraver Drilling/Milling Machine with Driver Power

  • SKU:22715
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 84
  • Price:$839.18
  • Price in reward points: 8392
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $822.40 $805.61 $780.44 $746.87 Contact US

CNC Machine Specification:



Effective Traveling Range 250(X)*300(Y)*55(Z)mm
Machine Dimension 420(X)*470(Y)*400(Z)mm
Working Table 320(X)*420(Y)*40(Z) mm
Frame Material  Aluminum Alloy 6061/6063
Driving Core X:  1610 ball screws
  Y:  1610 ball screws
  Z:  1002 ball screws
Sliding Core X: Dia. 16mm
  Y: Dia. 16mm
  Z: Dia. 10mm
Limit Switch X, Y, Z  (2 switch per axis)
Stepping Motor 57 2 phase 3A 1.8 Degree (Brand New)
Spindle Motor Not include
Principal Axis Collet ER11 / 3.175mm
Repeatability  0.05mm
Max No Loading speed (X, Y, Z) 2800mm/min
Carving Code G code/TAB files/nc file/NCC files
PC connection Parallel Port
OS Win2000 XP (Support Mach2 Mach3)
Carving Speed Depend on material
Weight 25KG



CNC Driver Specification:
Electrical properties (ambient temperature Tj = 25 ℃ pm):
Input Power 12-36V DC power supply
Stepper motor drive current 1.5A - 3A/phase
Drive type Double-pole constant flow PWM actuation output
Compatible Stepper motors 2 or 4 phase, 4,6 or 8 lead stepper motors, 3A max.
Dimensions 18 * 14 * 4 cm (L*W*H)

First Installation in 30 minutes:
- Assembling CNC (Separated to 2 part for shipping,  just screw up 4 screws then can be OK) and locating the CNC machine on stable  desk.
- Make sure that your computer has a on-board  parallel port output.
- Install control software and Drive such as the  MACH 3 or EMC2 (You can search easy in Google)
- Connect the X, Y, Z and Limit Switch socket from  machine to CNC controller, connect power cord (We  have already set the right voltage according your  country).  Connect parallel port from
- Follow our instruction on the MACH3 setting.

Package include:
- 3025 CNC machine*1
- 3 axis CNC driver*1
- 24V 15A power supply*1
