3 Axis Driver 2M542 4.2A & Breakout Board Router 5 Axis Controller CNC Kit for CNC Engraving Machine

Stepper Motor Driver 2M542
- High performance, cost-effective
- Supply voltage up to +50 VDC
- Output current up to 4.2A
- Self-adjustment technology
- Pure-sinusoidal current control technology
- Pulse input frequency up to 200 KHz
- TTL compatible and optically isolated input
- Automatic idle-current reduction
- 15 selectable resolutions in decimal and binary, up to 25,000 steps/rev
- Suitable for 2-phase motors
- Support PUL/DIR and CW/CCW modes
- Short-voltage, over-voltage, over-current protections


Parameters

2M542

Min

Typical

Max

Unit

Output current

1.0

-

4.2 (3.0 RMS)

A

Supply voltage

+24

+36

+50

VDC

Logic signal current

7

10

16

mA

Pulse input frequency

0

-

200

kHz



5 Axis Breakout Board
- The maximum matching 5-axis stepper motor driver
- The two-stage signal processing, signal transmission smooth, powerful anti-jamming
- 5 input interface to define the emergency stop, limit, points in the knife, etc.
- relay output control interface, can be accessed by the spindle motor or the air pump, water pump, etc
- five-axis job LED display, visual display products, working condition

Electrical Parameters:

Input Power

5V DC power supply or computer USB to take power

Work axis stepper

Received the highest 5-axis independent driving

Drive

Pulse +  direction +  enable signal.

Weight

About 200g

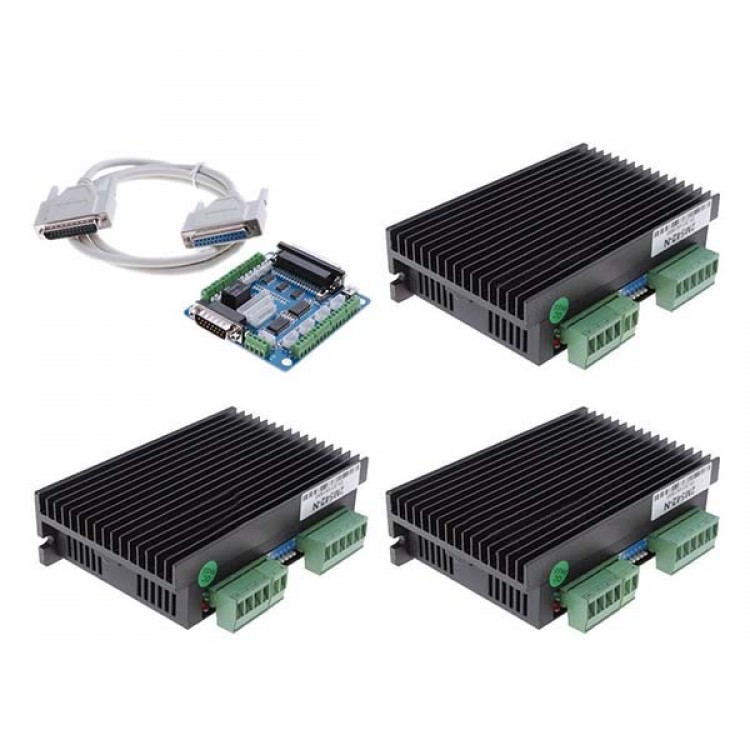

Package Content:
- 3 x stepper motor driver 2M542
- 1 x 5 Axis Breakout board
- 1 x PC Parallel Cable
- CD software (English Manual & Mach 3)
