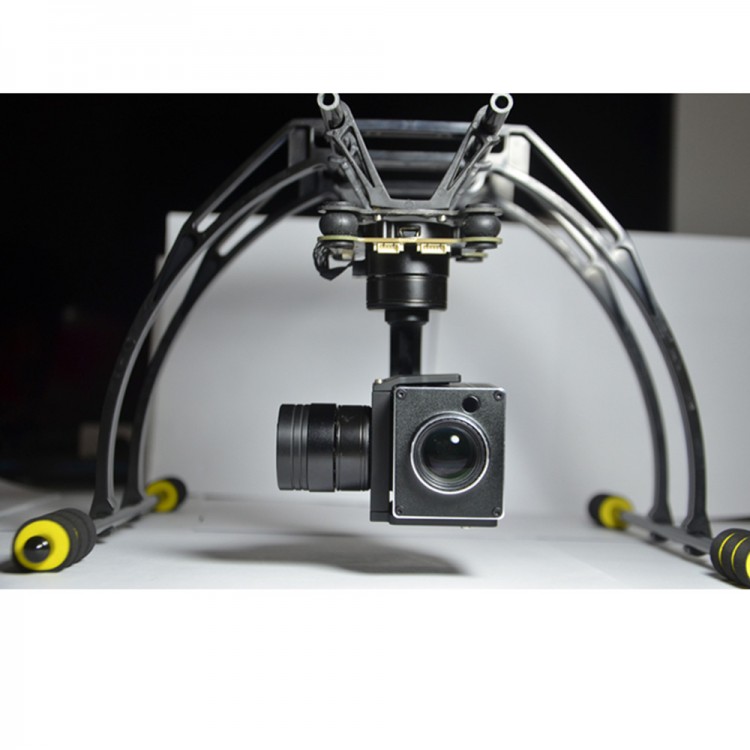

3 Axis Gimbal + Camera Combo 10x HD Optical Zoom Cam for Aerial Video Shooting Photography

Availability: In stock, usually dispatched in 1 business day

  • Price:$816.27
  • Price in reward points: 8163 Reward Points: 82
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $799.94 $783.62 $759.13 $726.48 Contact US
Quantity:

3 Axis Gimbal + Camera Combo 10x HD Optical Zoom Cam for Aerial Video Shooting Photography

Camera Features:

- Using 1/3in 3megapixel CMOS sensor, with focal range f=4.9~49mm. The camera is comparatively very tiny(63*47*40mm) while it can zoom 10 times to capture more details.
- Focusing time <1s, specially designed fast focus algorithm for multicopter aerial video shooting.
- Using 105dB wide dynamic enables the camera to capture clear views under whether backlighting, highlight, bright or dark circumstances.
- The camera is able to capture clear views under low light level circumstance.
- CVBS analog D1 output, HDMI 1280*720p@60fps
- Support PWM signal control (Using remote controller to control the zooming)
- Support flip vertical/horizontal, still image, auto white balance, auto gain, auto color correction
- Wide working temperature range: -10degree C ~ 55degree C
- Comes with control protocol, available for parameter order control of camera
- Dimension:63*47*40mm
- Weight: 109g

3 Axle High Accuracy Autostable Gimbal:
- PL3A high accuracy gimbal is specially designed for the 10x zoom camera. All the parameters of the gimbal are default well adjusted and you can directly use it.
- Autostability on 3 directions: yaw, pitch, roll. The damping function is integrated design with the gimbal, and the damping effect is so impressive.
- Available apply to many aerial video shooting areas such as public security, electricity, fire fighting etc.

Gimbal Features
- Current: quiescent current 240mA(@12V); dynamic current 320mA(@12V)
- Voltage input: 3S(11.1V)
- Working temperature: -10 degree C ~ 50 degree C
- Dimensions: 105*91*98mm
- Weight: 260g(Not including camera)
- Pitch range: ±90deg
- Roll range: ±45deg
- Yaw range: ±150deg continuously rotate
- Angle jitter:  Pitch & Roll ±0.02deg;   Yaw ±0.03deg

Package list:
- 1 x Gimbal + Camera Combo
