3 Phase 57 Nema23 Closed Loop Stepper Motor +Motor Driver Set LC57H3100+ LCDA357H CNC

Availability: In stock, usually dispatched in 1 business day

  • Price:$154.16
  • Price in reward points: 1542 Reward Points: 15
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $151.08 $147.99 $143.37 $137.20 Contact US
Quantity:

3 Phase 57 Nema23 Closed Loop Stepper Motor +Motor Driver Set LC57H3100+ LCDA357H CNC


Features:

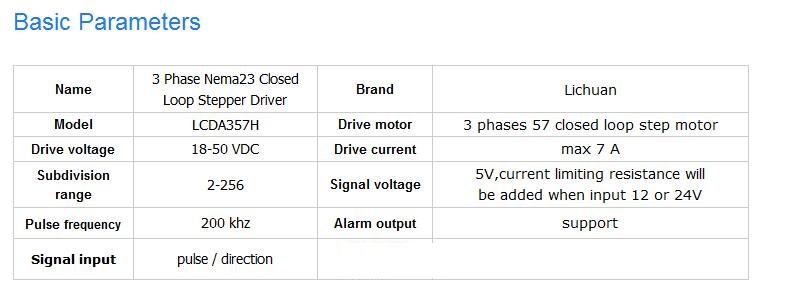

- Input voltage range: 18-50 VDC
- Maximum peak current: 7A
- Subdivision range: 200-51200ppr

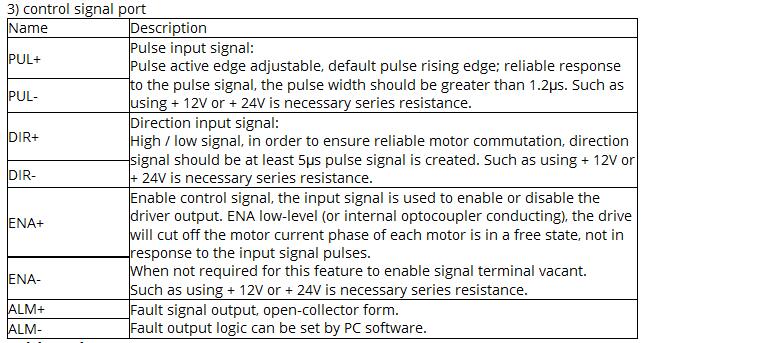

- Signal Input: Differential/Single-Ended, pulse/direction
- Impulse response frequency: 200KHz
- The electrical parameters of automatic tuning function
- Closed-loop vector control to ensure the motor speed high torque output, while ensuring that the motor does not lose steps

Package list:

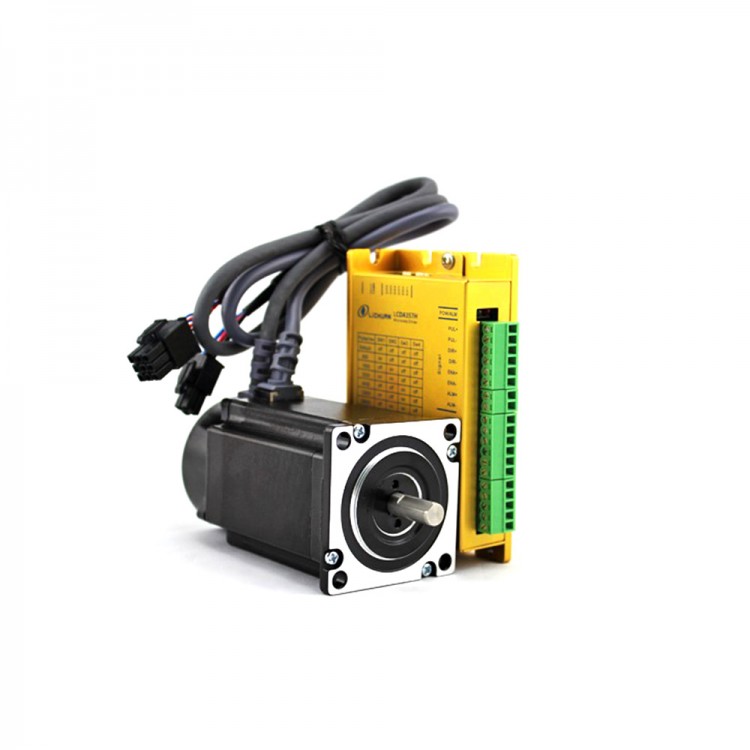

- 1 x 3 phase NEMA23 Closed-loop stepper motor LC57H3100
- 1 x 3 phase closed loop stepper motor driver LCDA357H
- 1 x Cable
