| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $734.90 | $719.90 | $697.41 | $667.41 | Contact US |

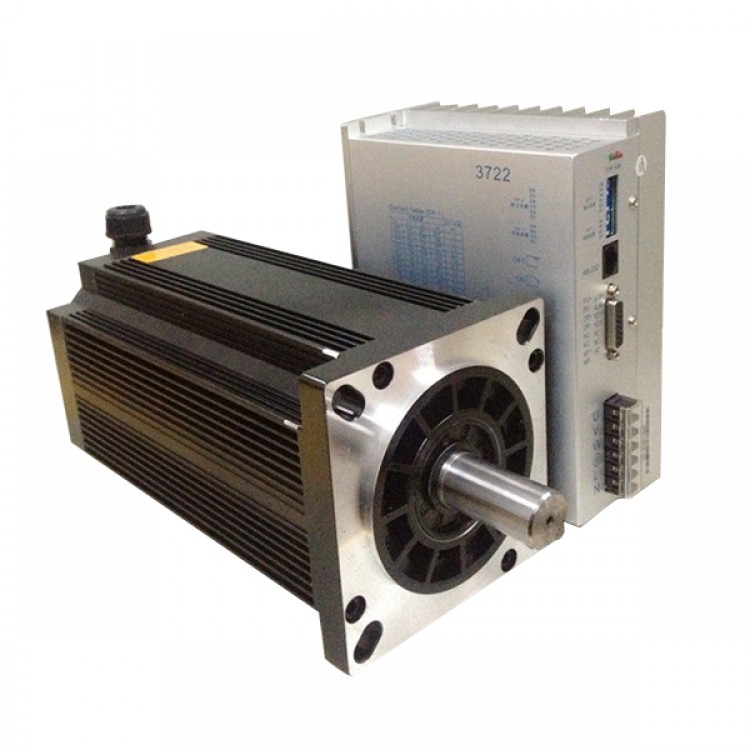

3 Phase Stepping Motor Combo 130BYG350D Torque 50N.M Driver 3722-50
Motor description:
- Type: 130*130
- Motor body length: 271mm
- Shaft diameter: 19mm, Key slot: 6*6*30
- (Or shaft diameter: 24mm key slot: 8*8*30)
- Torque: 50N.m
- Rated rotate speed: 600rpm
Stepping motor driver features:
- 16 levels of angle torque subdivision, the highest definitionn 60000 steps/round
- The highest response frequency can reach 200Kpps
- When stepping impulse stops for over 1.5s, coil current will reduce to the half of the setting current automatically
- Photoelectric isolation signal input/output DC5-28 v within the scope of freedom of choice
- Driver current 1.2A/phase to 5.8A/phase, 16 levels adjustable
- Single power supply input, voltage range: AC110-220V
- Phase positoning memory function
Package list:
- 3 Phase Stepping Motor x 1
- 3722-50 Driver x 1
