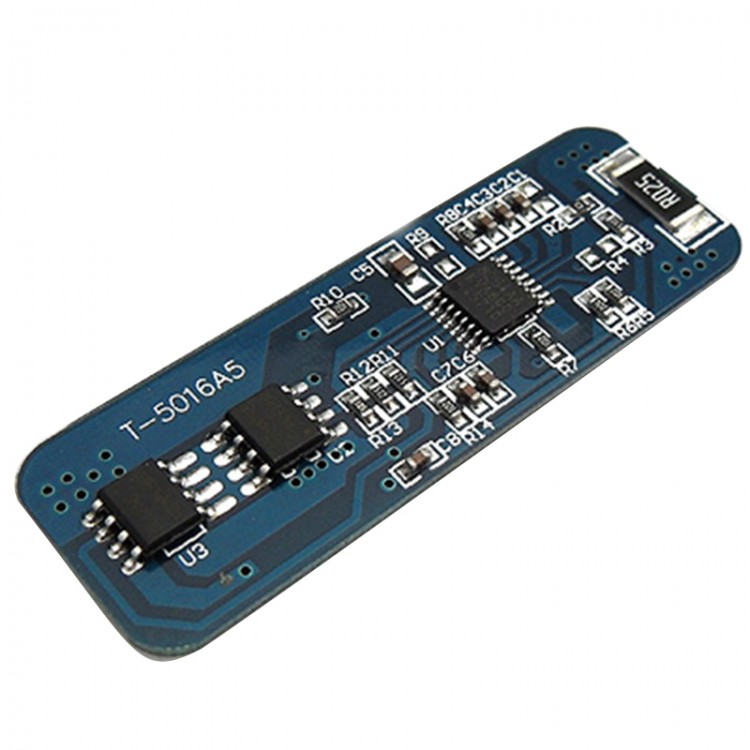

3 Series Battery Polymer 10.8V 12.6V 3A Lithium Battery Protection Board for DIY
Weld Description:
- B + battery pack connected to the positive;
- B1-connected battery 1 and battery 2 pick;
- B2-connected cell 2 and cell 3 pick;
- B3-do not pick
- B-connected to the negative terminal of the battery pack
- P + connection charge / discharge upright pole (charging terminal / discharge side shared)
- P-connection charge / discharge end of the negative (charging terminal / discharge side shared)
Package included:
- 1 x Battery Protection Board
