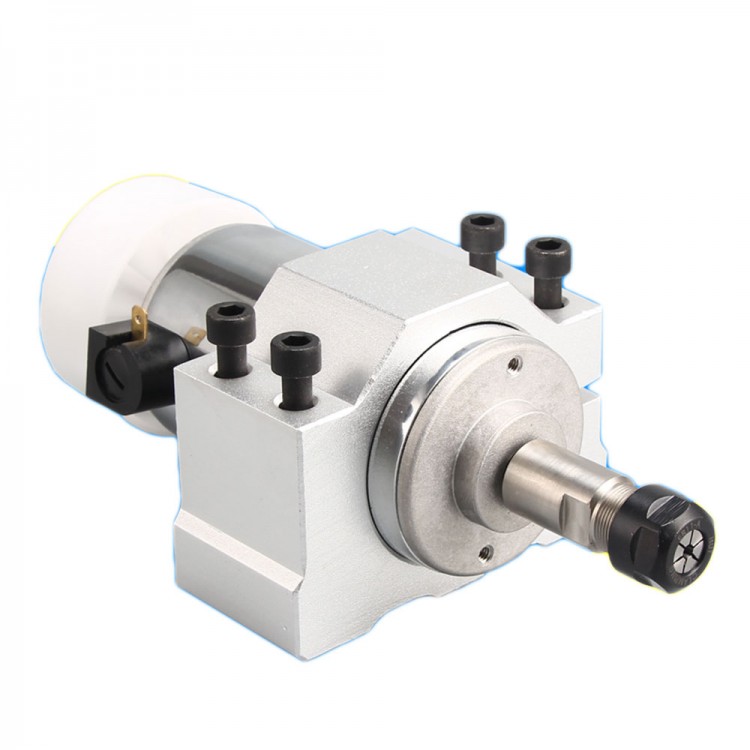

300W Air Cooling DC Spindle Motor + Motor Mount 52mm for CNC Router Engraving Machine DIY

Availability: In stock, usually dispatched in 1 business day

  • Price:$54.50
  • Price in reward points: 545 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $53.41 $52.32 $50.69 $48.51 Contact US
Quantity:

300W Air Cooling DC Spindle Motor + Motor Mount 52mm for CNC Router Engraving Machine DIY



Specifications:
- Spindle motor: Air-cooled DC Spindle Motor
- Working voltage: 12-48VDC
- Power: 300W
- Current: Maximum current is 6A
- Speed: 3000-12000r/min (12V-3000, 24V-6000, 36V-9000, 48V-12000rpm)
- Torque: 400mN.m
- Absolute temperature rise: 15 degrees Celsius
- Insulation resistance: >2 MB
- Dielectric strength: 400V
- Diameter: 52mm
- Collet: length of cutter parts 35mm, total 52mm
- Motor length: 175mm (including the clamping part and motor)
- Spindle net weight: 0.8KG
- The spindle is about 0.01mm.
- Can be used for engraving metal or nonmetal materials.

Package list:
- 1 x 300W Air Cooling Spindle Motor CNC
- 1 x Motor Mount
- 1 x ER11A screw
- 1 x 3.175mm collet
