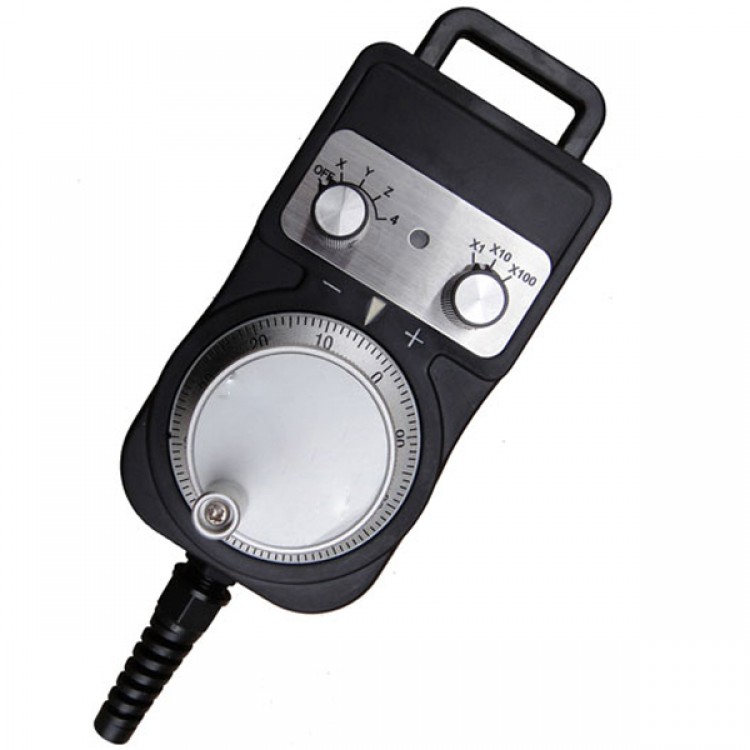

3020 Universal CNC 4-Axis Handle MPG Manual Pulse Generator 100/25 Pendant Encoder
Description:
- Plastic Case,high isolation,anti-oil and anti-dust design
- ×1,×10,×100 three Modes
- For Engraving Machine,printers and other CNC Machine
- Optinal pulse:25p/r  100p/r
- this MPG is faster than other, up to 4500 steps per second, usually a MPG only reaches to 3000.
- only 50 cell on the encoder, so the pricision is higher.
- oil-proof, water-proof, dust-proof, IP65 helix cable can work more than ten thousand times.

Specfication:

module

 HC

Pulse output

25/100PPR

Power supply

DC5~24V

Current without load

≤60mA

Output type

voltage

Output voltage

high≥ VccX0.7v

Low≤0.5v

Current output

≤ 35mA

Fall/Puse Time

5us(Typ)

Frequency respond

0~5Khz

isolating resistor

≥20M

Power indicator

set

size

155(with hook)*70*30mm

weight

About 525g

work/store temperature

-10~+60C  -20~+70 C

magnification

X1,X10,,X100

axis

OFF,X,Y,Z,4

e-stop switch

NO

holder

NO

Spring cable

black, 19pins, 2meter, stretch to 5 meters.

Model defination:
- HC-100PPR—Signal:(A  B ﹣A﹣B) Voltage:5V Pulse:100ppr
- HC-25PPR --Signal ()A  B),Voltage:5-12V ,Pulse:25PPR
