32 Channel Servo Control Board & Robot PS2 Controller & Receiver Handle for Robot DIY Platform

32 Channel Servo Control Board & Robot PS2 Controller & Receiver Handle for Robot DIY Platform

New version Software download link: Click Here

English Manual V3.0: Click here

Wireless Controller and Receiver:
- State of art 2.4GHz wireless technology, no more tangled cord.
- Use 3xAAA Batteries (not included)
- Ergonomic Analog Sticks & Directional Pad for superior control
- Auto-detect feature for simplified set up
- Third party product, not made by Sony

32CH servo control board description:
- Weight: 25g
- Size: 63*45mm
- Working voltage: 5V
- CPU voltage: 3.3V
- Servo motor input voltage: 4.2-7.2V
- CPU: 32 Bits
- Baud rate (USB): 115200
- Baud rate (bluetooth, UART): 9600
- Storage Flash capacity: 16M
- Mode to choose: 4 types
- Simultineous controlling servo number: 32 channel
- Max action groups: 256 groups
- Communication agreement: UART
- PC software: support
- Single machine operation: support
- Support servo type: 9-55G(3.3-7.2V)
- Online operation support: C51, Arduino, ARM, DSP, Bluetooth, WIFI, PC
- Mode type: USB online operation, UART online operation(including bluetooth, WIFI), off-line independent operation, PS2 wireless remote control

32CH servo control board features:
- With 16M storage, can store thousands of indications, 256 groups of actions
- Servo interface has three colors pins to different from each other
- No need to programme
- Simple indication operation
- 32 bits high efficient low consumption CPU
- Cross platform operation, can support WindowsXP, WindowsVisit, Windows7, Windows8, Windows10, Linux, FreeBsd, MAC OS, Android
- Can support bluetooth, WIFI wireless control
- Adding signal isolation to protect control board
- PS2 wireless handle
- Compatible with all supporting serial port single chip
- Using Micro USB interface

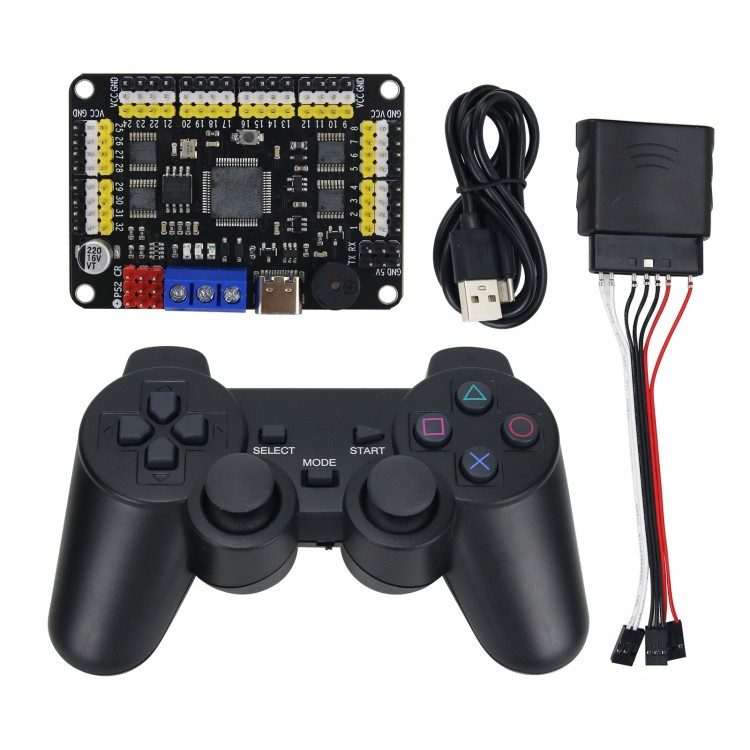

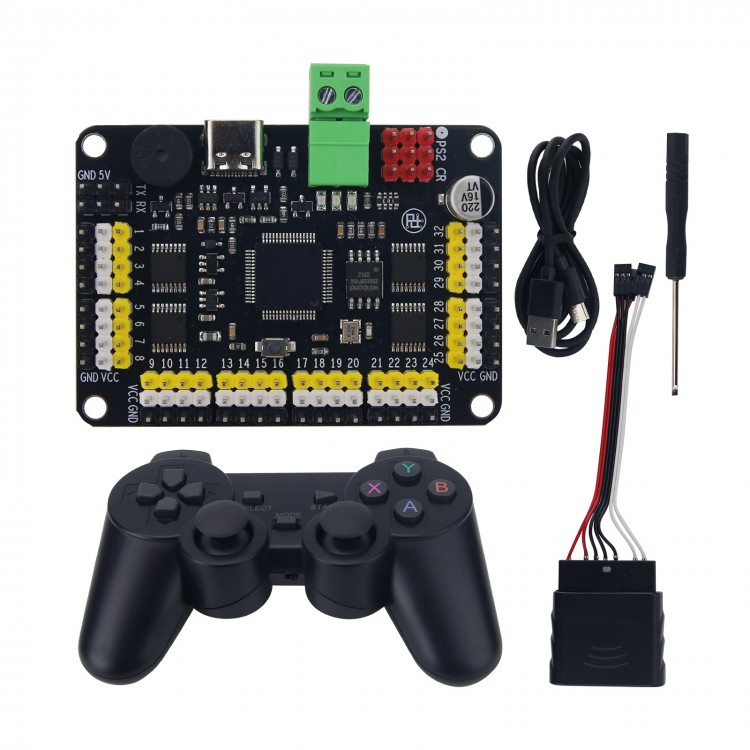

Package includes:
- PS2 controller x 1
- Receiver handle x 1
- 32CH servo control board x 1

http://www.rtrobot.org/software/
link :http://www.rtrobot.org/doku.php?id=arduino:chinese-manual:functions:communication

http://github.com/RTrobot/Servo-Controller-for-32/archive/2.5.2.zip

Turns out it was do to the jumpers on the board, after installing the software/driver you have to supply 5v + vcc power & ground to connect it to your PC. once the pc finds it you can select it under the COM settings in the software. :)
