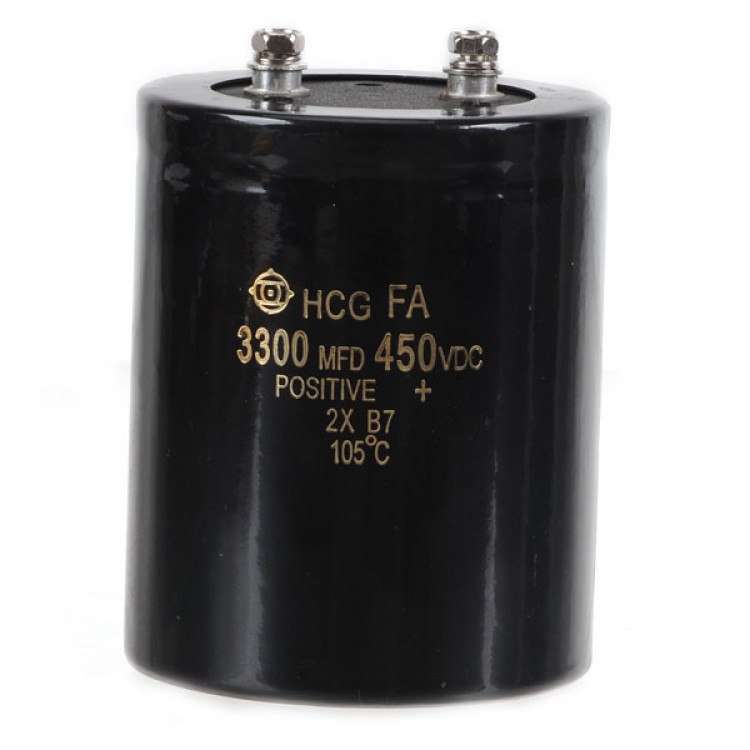

3300uF 450V Aluminum Electrolytic Capacitor 105*75*75mm
Descriptions:
- Load life:105 degree 5000hours
- High ripple current
- Capacitance range:3300uF
- Voltage Range:400W V
- RoHS Compliant
| ITEM | Performance Characteristics | |||||||||||
| Operating Temperature Range | -25 +105°C | |||||||||||
| Rated Voltage Range | 400WV 450WV | |||||||||||
| Capacitance Range | 2200-8200 uF | |||||||||||
| Capacitance Tolerrance | ±20%(120HZ,+20°C) | |||||||||||
| LeakageCurrent(+20°C,max) | I≤0.02C (uA) | |||||||||||
| After 5 minutes whichever is greater measured with rated working voltage applited | ||||||||||||
|
Dissipation Factor tan ,at20°C,120HZ) |
0.2 MAX | |||||||||||
|
Dissipation Factor tan ,at20°C,120HZ) |
Z-25°C/Z+20°C | 3 | ||||||||||
| Z-40°C/Z+20°C | 12 | |||||||||||
| Load life | Test condition | |||||||||||
| Duration time | 5000 hours | |||||||||||
| Ambient temperature | 105°C | |||||||||||
| Applited voltage | Rated DC working voltage | |||||||||||
| After test requeirement at +20°C | ||||||||||||
| Capacitance change | ≤ ±20% of the initial measured value | |||||||||||
| Dissipation factor | ≤ ±200% of the initial specified value | |||||||||||
| Leakage current | ≤ not more than the initial specified value | |||||||||||
| Shelf Life | Test condition | |||||||||||
| Duration time | 1000Hrs | |||||||||||
| Ambient temperature | +105°C | |||||||||||
| Applited voltage | none | |||||||||||
|
After test requeirement at +20°C:Same limits as load life Pre-treatment for measurement shall be conducted after application of DC working voltage 30 minutes |
||||||||||||
