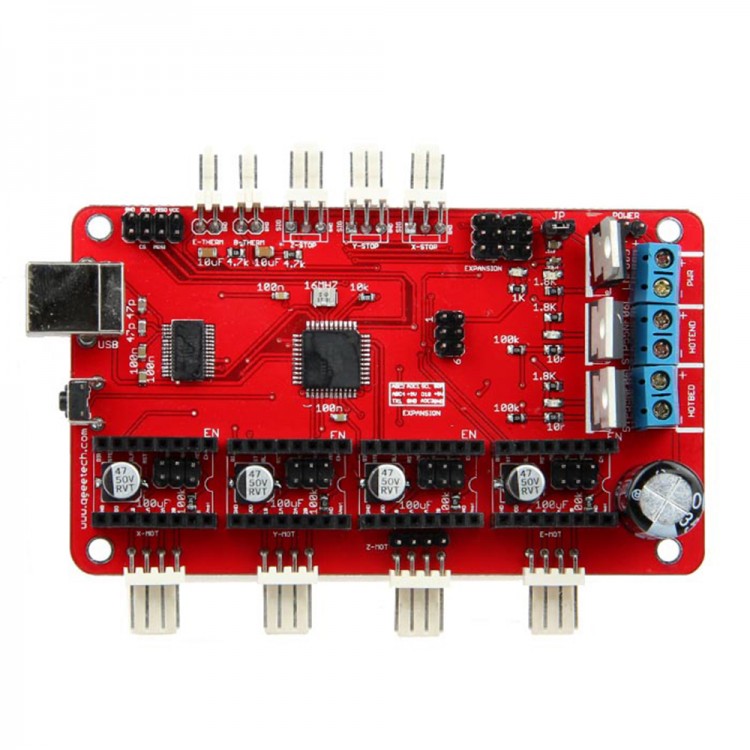

3D Printer Accessories Azteeg Mother Board Azteeg Control Board 3D Main Board
Description:
Azteeg Dashboard is an open source controller, designed for use in printers and the like based RepRap3DIt includesCartesian's CNC machines. It has all the features to run all the current and future design of a single-screw extruder needed.
Based in Sanguino / Sanguinololu of Azteeg and is compatible with most Arduinos-based firmware (Sprinter, Marlin, Repetie, and some others). It is pin-compatible with the pin and Sanguinololu another fan pins. Azteeg control panel features SMT parts mainly to reduce the production and reduce costs.
Feature:
- Atmel ATMEGA644P FT232RL FTDI USB chip
- Compatible with Sprinter, Marlin, epetier
- High current capacity connector and PCB traces.
- MOSFET control extruders and 1 hotbed
- Additional PWM control small fan or lights
- 3 endstop and two thermistor inputs
- 12-30V input high efficiency switching power supply 500mA maximum
- Dedicated SD card female [SDRAMPS compatible]
- MOSFET fewer calories low on-resistance of accumulation
- Input Power Selection microcontroller USB or internal regulator
- Stepper motor auxiliary power input
- Optional pad spike suppression diode TVS MOSFET's
- Including MOSFET heatsink
- Serial I2C, TX1, + 5, expansion port GND, SPI and ADC pin
- Fast acting Blade Fuse
- Set includes two right angle and vertical connector
- A large number of LED, PWR, hot and hot beds
Package included:
- 1 x Main Board
