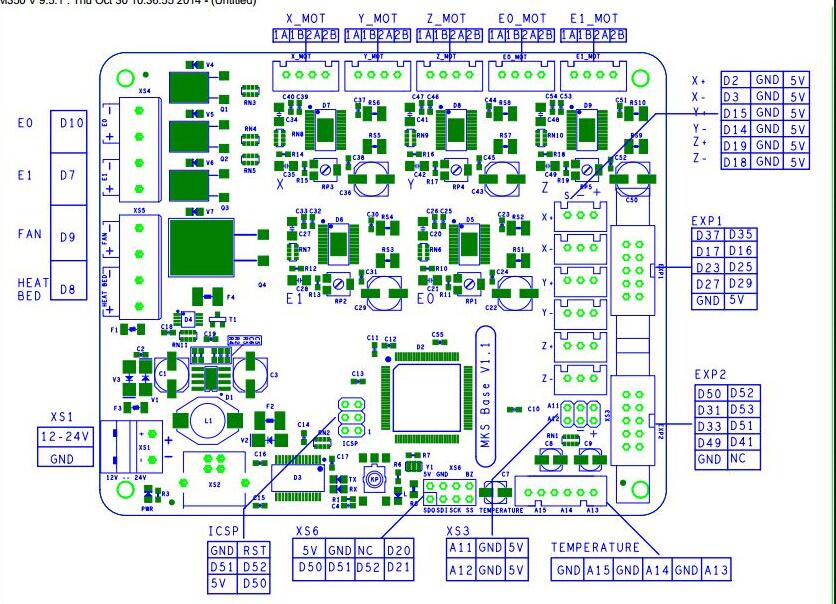

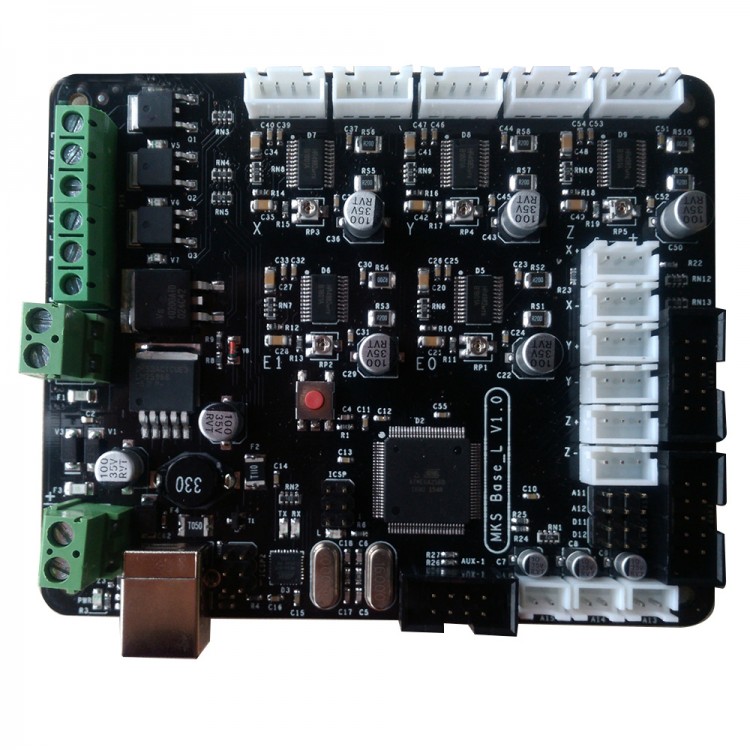

3D Printer Motherboard Controller Board 4 Layers MKS Base_L V1.0 DIY Arduino
Description:
MKS Base_L and MKS Base: same interface and similar performance. But for MKS Base_L . USB drive adopts 16u2 instend of FT232. The power supply is 2596, support 24V. The motor drive adopts HR4982.
Tips:
- Please make sure the polarity of power supply.
- Do not insert or pull otu motor when power on.
- Do not adjust current wehen motor running.
Features:
- All functions are integrated on the one borad
- Adopt HR49820 as motor drive
- 4 layers board, ramps is 2 layers
- Highquality MOSFET tube, good heat radiation
- Support 12-24V input
- Can use open source firmware Marlin
- Can connect to Ramps1.4, 2004LCD and 12864LCD controller board directly
Package list:
- 1 x 3D Printer Controller Board
- 1 x USB cable
