3D Printer Motherboard MKS MINI V1.2 Compatible Ramps1.4 One-Extruder No Heatbed Printing

Overview

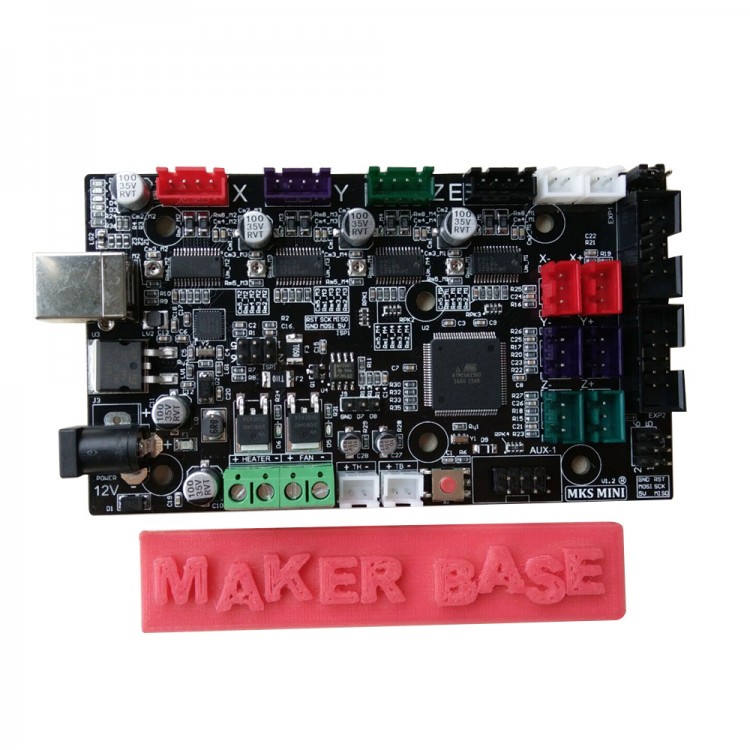

- MKS MINI is a feature all-in-one electronics solution for Reprap and other CNC devices.It features an onboard ATmega2560.
- It's four motor outputs are powered by DRV8825 stepper drivers.

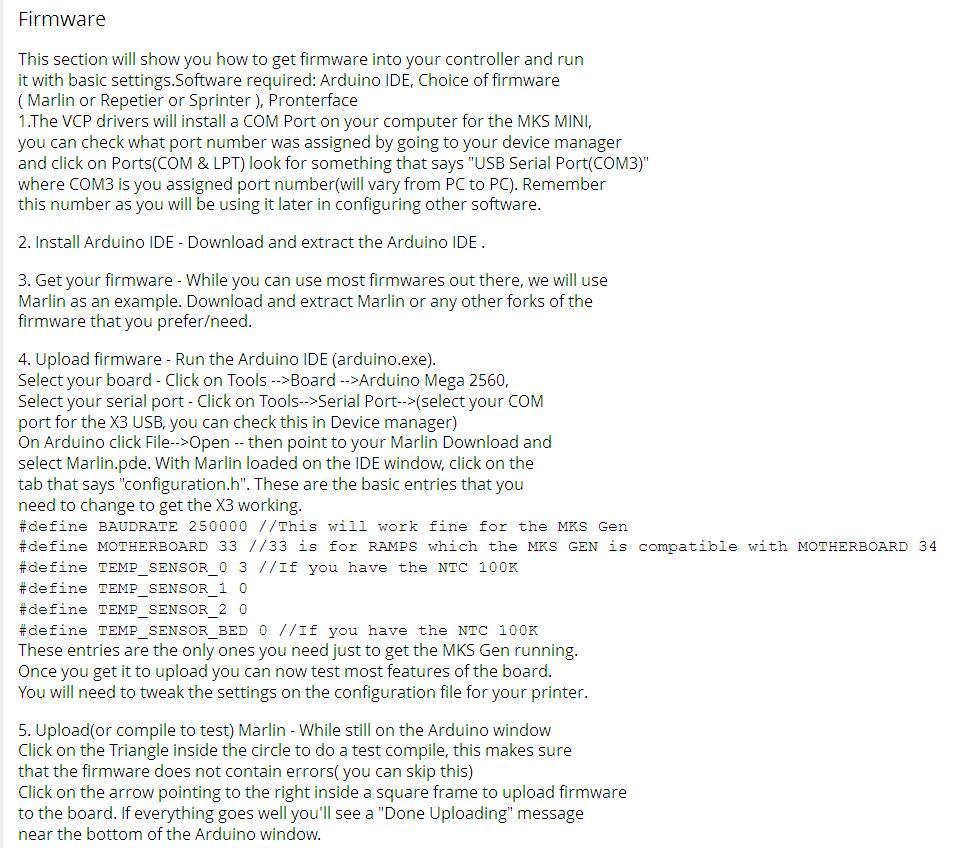

- The board can use the same firmware as Ramps1.4.

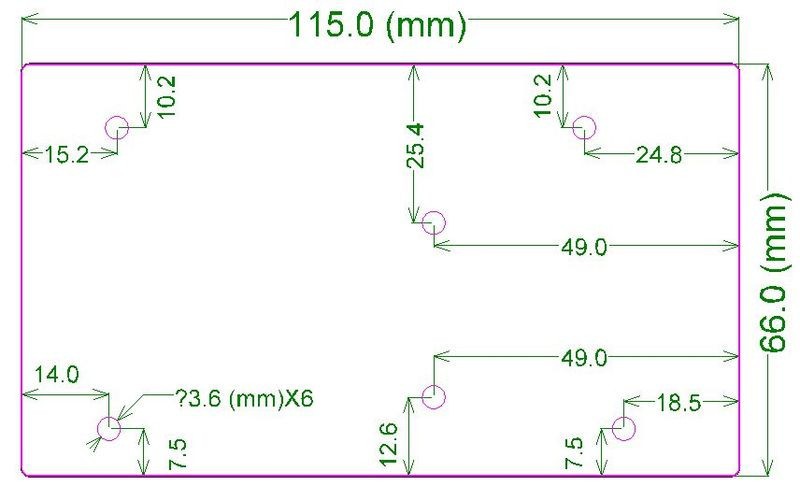

- The mounting hole locations is the same as Arduino Mega2560.
- The power supply with 7805, more stable and reliable than the 1117,but only supports 12V.USB to serial modules is 16U2, the same as Arduino Mega2560.Without hot bed heating output, but has bed thermal interface and bed control signal interface.
- MKS-MINI  is  suitable for One-Extruder and no bed printing.

Features
- Arduino MEGA compatible Atmega2560 processors are compatible with all RAMPS class firmware
- Easy DISPLAY + SD-CARD connector,RepRapDiscount
- SmartController compatible pin header on board
- Firmware can use the same configuration as ramps1.4
- 2x temperature ADC connectors for thermistors
- Up to 4 motor driver with DRV8825
- 2x PWM capable power mosfet outputs with voltage selector for MainPower.(Extruder0,Fans)
- 6x end stop connectors with power supply Xmin/Xmax/Ymin/Ymax/Zmin/Zmax
- 4 layers PCB, optimize heat dissipation.
- Recoverable fuse for short-circuit protection.

Package list:
- 1 x 3D Printer Motherboard
