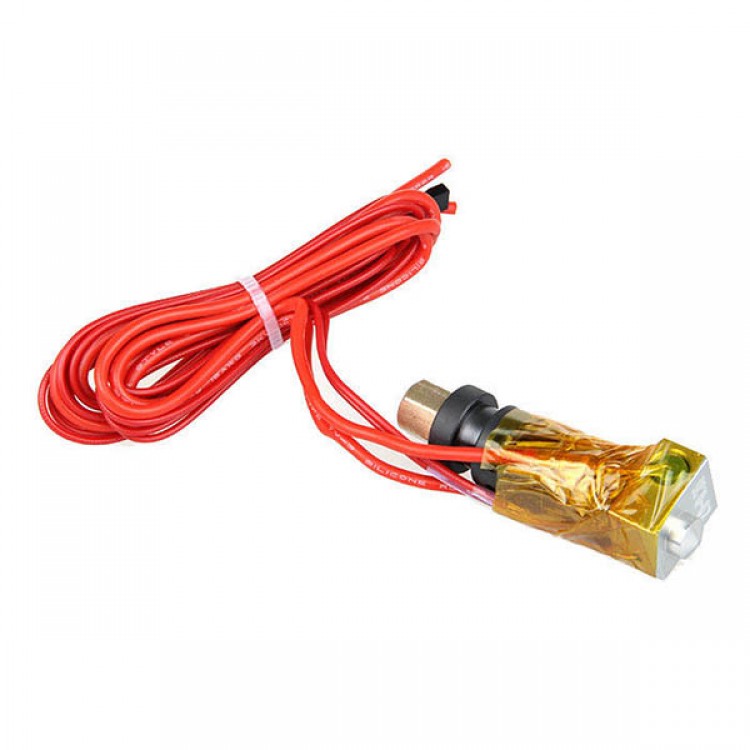

3D Printer RepRap J-head MKIV MKV Hotend Nozzle Extrusion Head with Cable
- Removed the heat sink and added a series of vents to provide cooling. To reduce weight, an aluminum nozzle is used.
- This J-Head Hot End is designed based on other nozzle. It's very simple by reducing the number of custom machined parts to a bare minimum.
- The J-Head Hot End can easily and well interface with the most popular RepRap extruders. The filament path is same with the one of an already proven design, it can be used to print reliably with both ABS and PLA. If using PLA, it requires a small fan to provide air-flow through the cooling vents milled in the sides of the nozzle holder. Besides, the Hot End has another two advantages. Heat transmission is more efficiency as there is no thermal junction where a separate heater screws onto the nozzle. And a resistor is used as a heater. There is no need to wrap nichrome wire or to bake a heater core.
We defult Send nozzle Diameter 0.3mm / input head diameter at 3mm ABS/PLA
Nozzle size for choose from:0.3mm 0.35mm 0.4mm 0.5mm
Input head diameter for choose from:1.75mm/3MM
PLS tell us your requirement when you place order!
