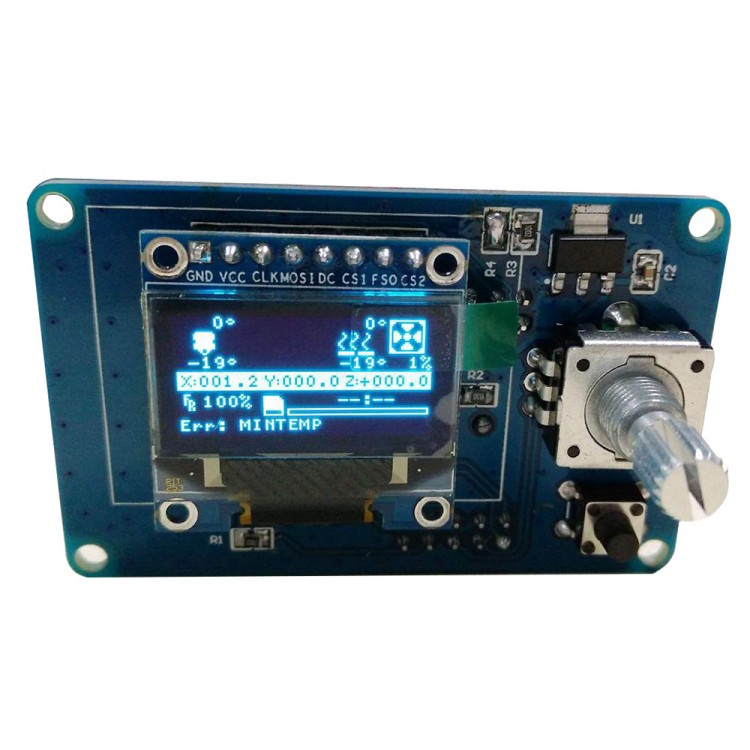

Overview
- MKS OLED0.96 adopts OLED display and created by Makebase.
- It is suitable for the printer which carries with small display ,installed size and good display effect .

Features
- Default 1.3 inch OLED display;
- If you have other sizes display, you can ask not to weld 1.3 inch OLED either ,but the interface will be retained for users;
- The interface of MKS-12864OLED is as the same as 2004/12864LCD.

Notice:

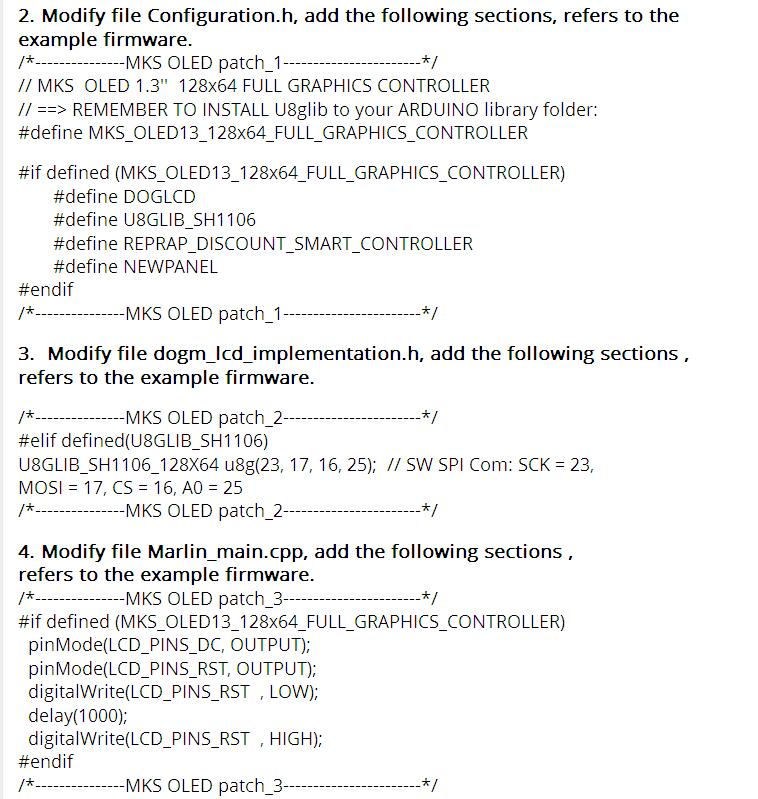

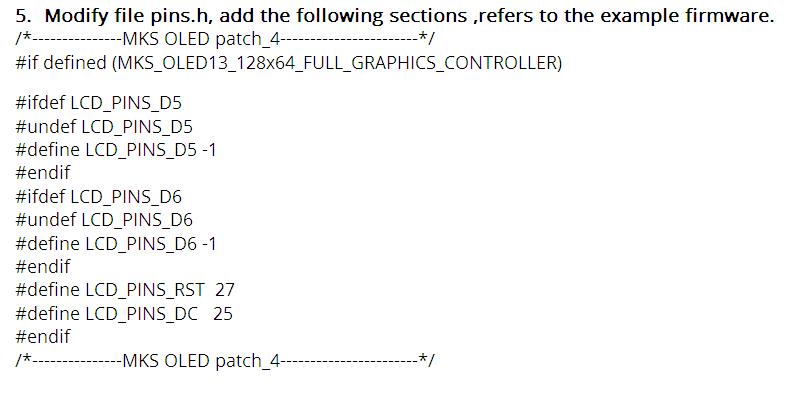

- The Marlin must be modified before use, the modification method refers to the below instructions.
- Repetier may not work unless you self-develop one.
- We will provide an example of firmware for testing, but does not provide technical support.
- Each piece will be tested.

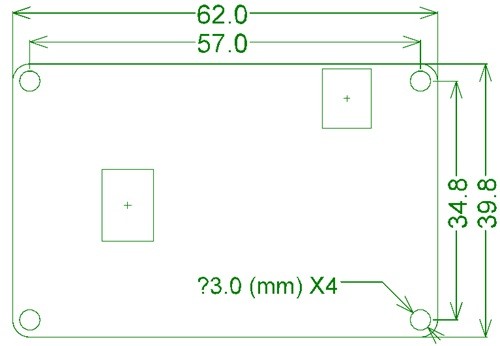

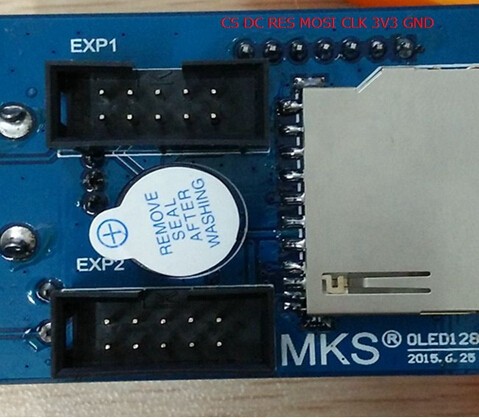

Connection:

EXP1 connects to EXP1 of mainboard
EXP2 connects to EXP2 of mainboard

You must follow the connection sequence, especially 3v3 and GND,wrong connection will burn OLED.
- GND:  connects to GND of OLED   power ground
- 3V3:  VCC of OLED              power anode
- CLK:  CLK of OLED               clock
- MOSI:  MOSI of OLED            data
- RES:  RES of OLED               reset
- DC:  DC of OLED             data order option
- CS:  CS of OLED              chip selection

Instruction on Usage

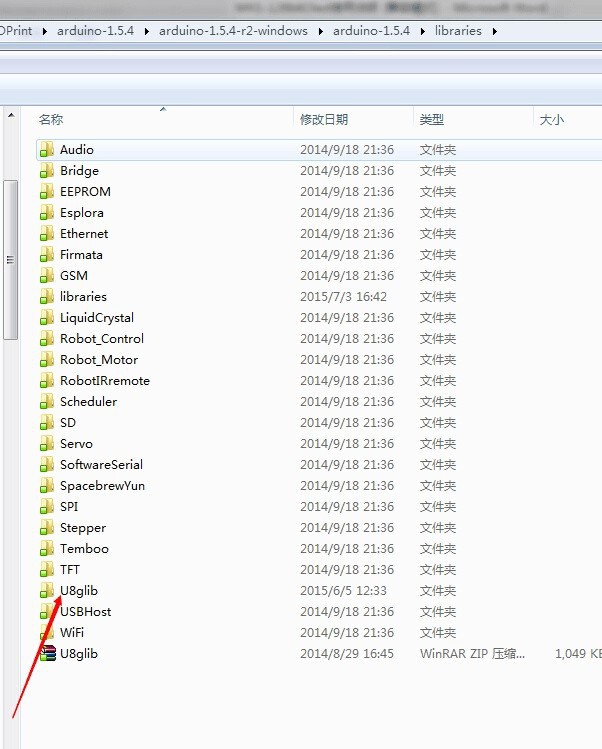

If use Arduino IDE, We suggest  1.5.4 updated version.And unzip U8glib.rar into libraries directory.  As follow:

Package list:
- 1 x 3D Printer Controller Panel
- 2 x Cable
