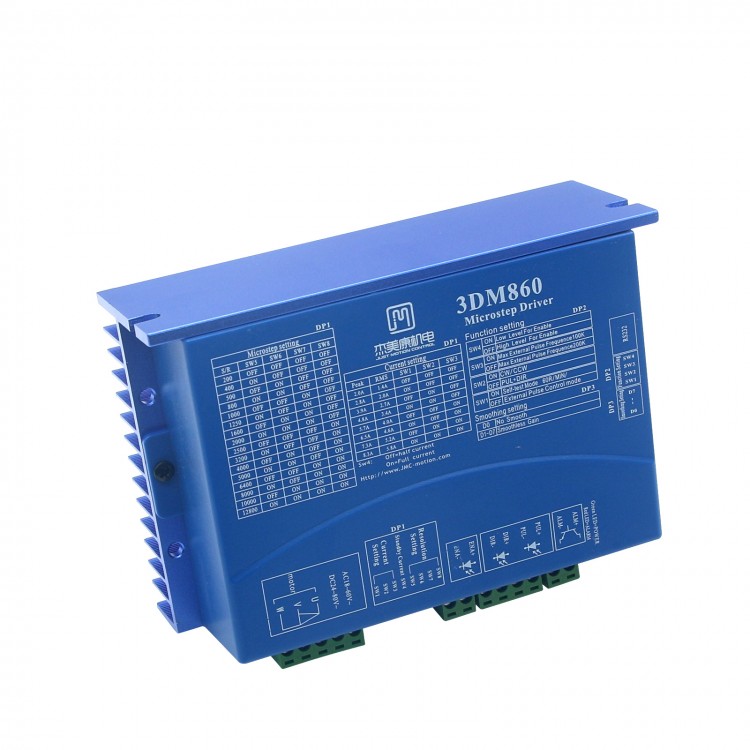

3DM860 3 Phase Digital Stepper Drive Motor Driver Controller for CNC Router Laser Engraving Machine
Product Introduction:
- The 3DM860 is a three phase digital stepper driver based on DSP. Its Micro step resolutions and output current are programmable. And it has advanced control algorithm, which can brings a unique level of system smoothness, provides optimum torque and mid-range instability.
- The control algorithm of Multi-Stepping can make stepper motor has smooth system performance. The control algorithm of torque compensation can improve the torque of motor in the high speed. The control algorithm of motor self-test and parameter auto-setup technology offers optimum responses with different motors and easy-to-use.
- The control algorithm of smoothness can enhance the acceleration and deceleration of motor. Its unique features make the 3DM860 to be an ideal solution for applications.
Features:
- Parameter auto-setup and motor self-test
- Multi-Stepping inside
- Small noise, low heating, smooth movement
- Torque compensation in high speed
- Variable current control technology, High current efficiency
- Accelerate and decelerate control inside, Great improvement in smoothness of starting or stopping the motor
- Support PUL/DIR and CW/CCW modes
- Storage the position of motor

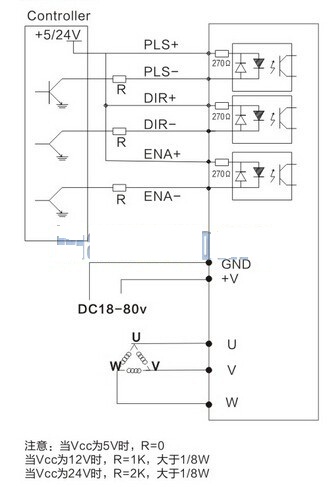

- Optically isolated input and compatible with 5V or 24V

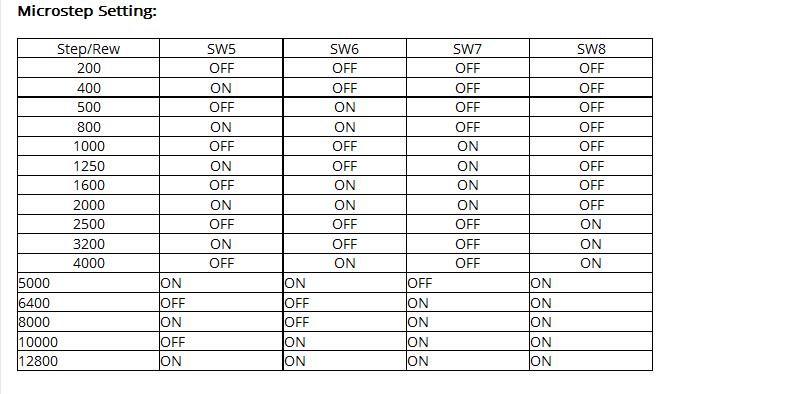

- User-defined micro steps
- Microstep resolutions and Output current programmable
- Over current, over voltage and low voltage protection
- Green light means running while red light means protection or off line

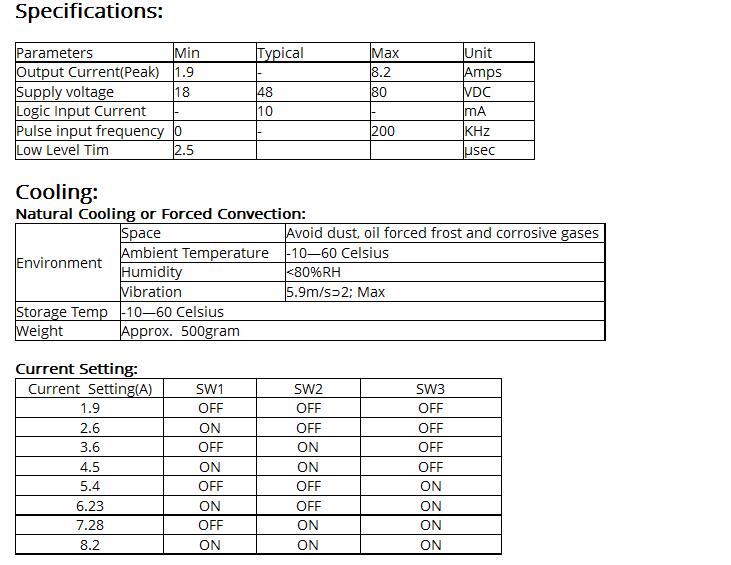

Technological Index:
- Input Voltage: AC24V~80V
- Output Current: 7.5A 20KHz PWM
- Pulse Frequency max: 200K
- Communication rate: 57.6Kbps
- Protection: Over current peak value 12A±10%;Over voltage value:130V;The over position error range can be set through the HISU

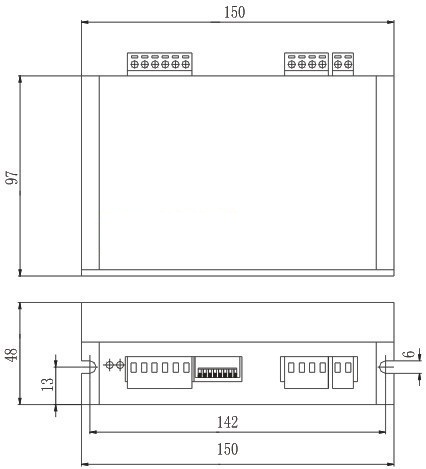

- Overall Dimensions（mm）:150×97.5×53
- Weight Approximate:580g
- Environment: Avoid dust, oil fog and corrosive gases
- Operating Temperature: +70℃ Max
- Storage Temperature: -20℃~+80℃
- Humidity: 40~90%RH
- Cooling method: Natural cooling or forced air cooling
User Manual:Click here
Package list:
- 1 x CNC Stepper Motor Driver 3DM860
