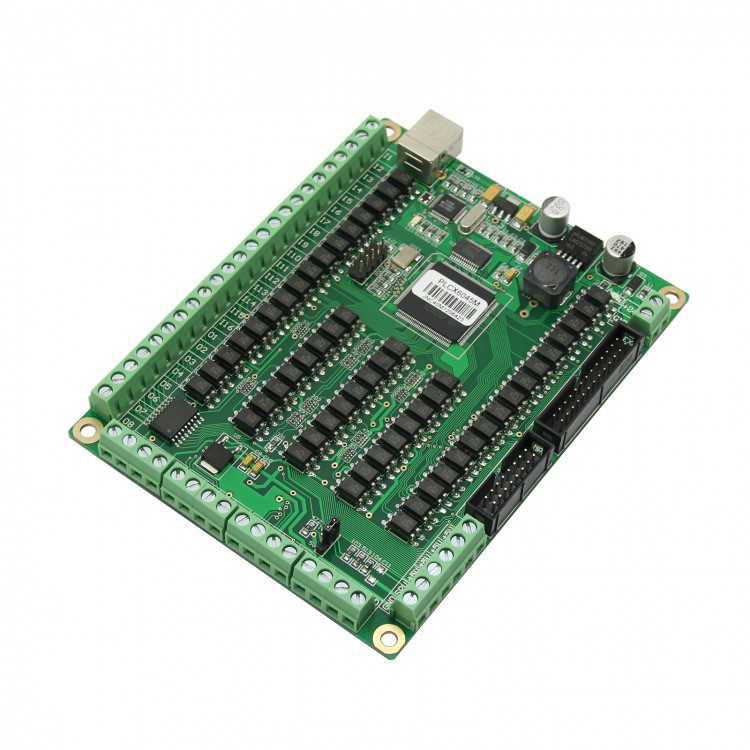

4 Axis 200KHZ 50M Industry Mach3 USB CNC 3 Axis Breakout Board for Carving Machin System Engraving Machine Control Card

Availability: Out Of Stock

  • Price:$219.80
  • Price in reward points: 2198 Reward Points: 22
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $215.40 $211.01 $204.41 $195.62 Contact US
Quantity:

4 Axis 200KHZ 50M Industry Mach3 USB CNC 3 Axis Breakout Board for Carving Machin System Engraving Machine Control Card

Features:
- 4 axle linkage interpolation operation.200KHz version
- 32 Optical coupling isolation input,16 Optical coupling isolation output.8 output relay
- Computer minimum configuration P3/800 m 128 m memory (only can we guarantee)
- The built-in S type and deceleration manual mobile shaft/inching smooth, four axis and linkage.
- USB on-line, convenient computer connection. On-line automatic detection.
- Pulse output using remote differential output/reliability higher/faster/anti-jamming stronger
- Large stroke software limit, is stroke 8 meters, negative stroke 8 meters. Limit gentle accurate stop.
- The handwheel operation, may meet integration the handwheel (needs to write PLC program to choose axis).
- Can control spindle positive &negative, cooling liquid, etc. Auxiliary function more.
- Automatic to knife, found edge, points in. Real-time condition, will not damage the blade.
- Spindle converter control, optional 0 to 5 v or 0-10 v voltage control speed.
- Supports Windows 2000, XP, 2003200 8, Vista, Windows 7 operating system.
- Support MACH3 software the latest version and old version.
- A wide voltage power supply DC12-32 v. Matching industrial most peripheral interface.
- Easy installation concise. Wiring simple, board SMD process.
-. Can control servo drive and stepping motor drive.
- All chip adopt technical grade. Conform to the south north high temperature and low temperature environment.
- Can drive panasonic, table up, sanyo, AnChuan, etc. Stepping drive available ray ", research point, believe in farming, A3977, THB7128, L297 + L298, TB6560, etc.
- Electromagnetic compatibility better, good value.


Package Content

- 1 x Video data CD
- 1 x Chinese version of a software Mach3
- 1 x USB connection cable (2.5 m long, double-ring, high shielding customized)
- 1 x 200Khz Control Card 4 axis (anti-static bag)
