|Quantity||3+ units||10+ units||30+ units||50+ units||More|
|Price /Unit||$107.70||$105.50||$102.21||$97.81||Contact US|

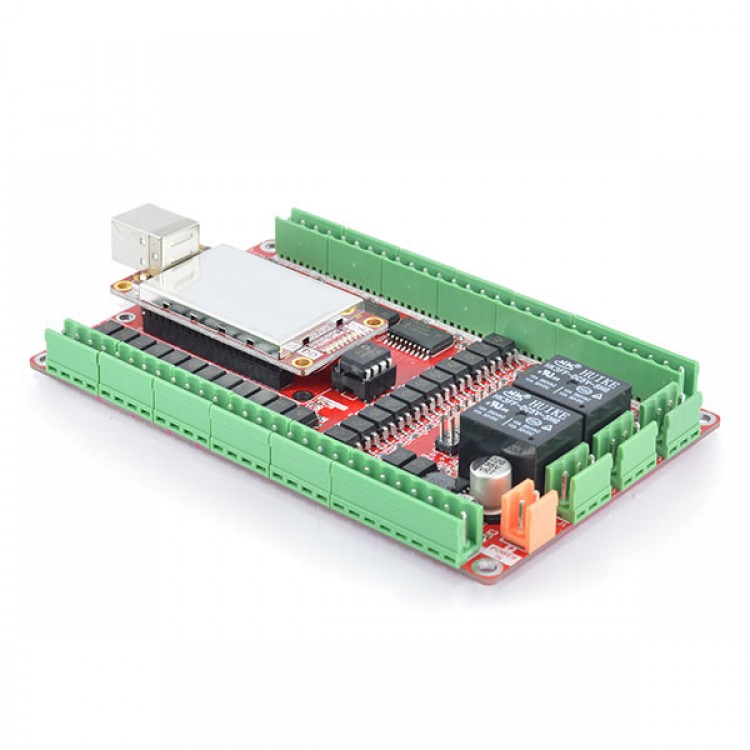

4 Axis 200KHZ Four Axis Stepper Motor Driver Breakout Board USB MACH3 USBCNC Interface Board for CNC Engraving Machine
- Control 4 stepper motor running at the same time
- with 20 programmable input interface, can be configured to limit stop, etc.
- with 16 channel programmable output interface, can be configured to cold water, fog is accused of peripherals.
- with two-way relay control.
- spindle PWM output control.
- support MACH3 software
- USB interface, support the MACH3 software.
- DCDC electrical isolation
- high-speed optical coupling
- 5V / 12v power supply output, support lines to 2 or 3 PNP proximity switch.
- the highest 200 k stepper motor control pulse output, suitable for most of the machine tool system needs
- 1 x 4 axis Breakout board
- User instructions and DLL File download:Click Here
- New DLL File Download : Click Here
Pls use the new ddl document to replace the old version,so that the driver can works
