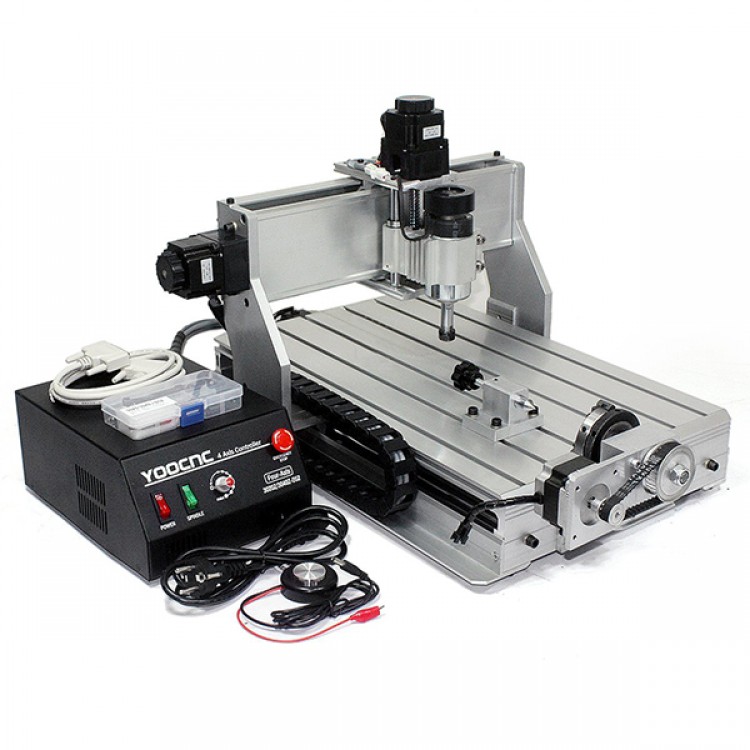

4 Axis 3040Z-4D CNC Router Engraver Engraving Machine Drilling Ball Screw 230W
  • 4 Axis 3040Z-4D CNC Router Engraver Engraving Machine Drilling Ball Screw 230W
  • 4 Axis 3040Z-4D CNC Router Engraver Engraving Machine Drilling Ball Screw 230W
  • 4 Axis 3040Z-4D CNC Router Engraver Engraving Machine Drilling Ball Screw 230W

  • SKU:26544
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 130
  • Price:$1,299.90
  • Price in reward points: 12999
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $1,273.90 $1,247.90 $1,208.91 $1,156.91 Contact US

4 Axis 3040Z-4D CNC Router Engraver Engraving Machine Drilling Ball Screw 230W

Pls contact us for the shipping fee and avaibility before you buy,thank you!

Description:
- 3040Z-4D model: 230W air cooled spindle motor
- More Precise Stepping Motor
- The engraving process is visible as controlled by computer
- Simple operation and installation
- Engrave almost anything on almost any surface
- X Y and Z axis carving make more precise and and three-dimensional effect.
- Cover plates reducing pollution for the screws and shafts.
- More steady and strong equiped with aluminum alloy frame materials.
- Reinforced and thickened machine body make transportation absolutely to be safer and longer life time

Technical Parameters
- Machine Dimensions: 610×485×395mm
- Rack material:6061 and 6063 hard aluminium alloy(the unique and dedicated mold extrusion profiles)
- Engraving Area:390×285mm
- Z-axis Stroke:55mm,Engraving depth depends on the length of the tool edge
- Max workpiece thickness:<=70mm
- Rail type: Chromeplate shaft+Linear Bearings(Surface hardening 61HRC)
- Transmission unit:SFU1204 ball screw
- Spindle motor:New DC spindle motor,230W/50V.11000rpm,lower noise,high precision,Support Mach3 control
- Collet: ER11,1/8”(3.175mm)
- Stepping motor and controller: two-phase 57/1.8A ,8 segments driver
- Maximum speed: 4000mm/min
- Engraving speed: 300-3000mm/min
- Repeat positioning Accuracy: 0.05mm
- Interface:Parallel port
- Software Compatability:Mach3/Emc2,(Type3,Wentai, ArtCAM,Coppercam)
- Command code: G code/.nc/.ncc/.tab/.txt
- Machine weight: 28kg(including packaging)
- Main application: engrave for Wood,bamboo,normal PCB,PVC,PMMA,plastic,bamboo,duotone board(ABS)and etc nonmetal,also can engrave on gold,silver,copper,aluminium,Pb etc soft metal surface working,but not milling working

- The 4th axis:
- Clamp diameter:50mm
- Ratio:1:3

3040Z-4D advantage(compare with 3040T+D and 3040T-DJ model) :
- 1.same size stepper motor but more torque,and the cables use more quality cnc flexible type
- 2.the power supply use ring transformer,more anti-interference and use more powerful controller
- 3.New 11000rpm spindle motor,and can turn and off the spindle by mach3 and PWM spindle speed control.more stable long working time
- 3 axis SFU1204 ball screw
- 95% aluminium material produced by mould extrusion forming,more beautiful and quality
- Add the Z axis tool setting function,let user feel more better

How to use

Please read the English user manual to see how to set up the software and how to use this machine.
1.Assembling and locating the CNC machine on steady desk well.
2.Make sure that your computer has a on-board parallel port output.
3.Installing a CNC control software and Drive such as the MACH 3 or EMC2 on your computer.
4.Connecting the control box with the CNC machine and you computer.
5.Fllowing our manual or guideline to set uo the software.
6.You can enjoy making you dream with using our CNC machine now.

Feature
- Simple operation and installation.
- More steady and strong equiped with aluminum alloy frame materials.
- Can be controlled by computer
- Mach 3 software is simple and intellgent
- Can control the engraving more precise
- Emergency stop button enhance security
- Stepping motor knob is useful for small positioning adjustment ,with steady and strong support structure.
- Cover plates reducing pollution for the screws and shafts.
- The reinforced and thickened machine body make transportation absolutely to be safer and longer life time.
- The chrome shafts is not easy to deform,suitable for long time use.
- Flexible coupling can be used for high torque transmission.
- High Precision Stepping motor makes engraving more precise .
- This item already be equiped NEW 1605 ball screws. Anti-blackflash,high precision,long life circle.

Package List :
- 1 x 3040Z-4D CNC Router machine  (110V and 220V Optional , We will follow the delivery destination country select voltage)
- 1 x Control box
- 1 x Parallel cable
- 1 x Power cable
- 1 x Tool box and tools
- 1 x 4th axis
- 1 x Tailstock
