4 Axis TB6560 3.5A Stepper Motor Driver Board w/ Aluminium Case+LCD Display Board+Manual Handle Set
  • 4 Axis TB6560 3.5A Stepper Motor Driver Board w/ Aluminium Case+LCD Display Board+Manual Handle Set
  • 4 Axis TB6560 3.5A Stepper Motor Driver Board w/ Aluminium Case+LCD Display Board+Manual Handle Set
  • 4 Axis TB6560 3.5A Stepper Motor Driver Board w/ Aluminium Case+LCD Display Board+Manual Handle Set

  • SKU:17480
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 13
  • Price:$132.21
  • Price in reward points: 1322
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $129.57 $126.92 $122.96 $117.67 Contact US

4 Axis TB6560 3.5A Stepper Motor Driver Board w/ Aluminium Case+LCD Display Board+Manual Handle Set

Features:

- Toshiba TB6560AHQ chip - maximum 3.5A drive current, more powerful !
- Compatible with manual handle and display panel ,Can switch computer control and manual control automatically without any interference,manual operate function will be stop atomatically when system operated by computer.Display board can shows computer data and manual handle data synchronously
- 1 - 1/16 microstep setting - higher accuracy, smoother operation !
- Overload & over-current & over-temperature protection, full protection of your computer and peripheral equipment
- 4 files current settings can be set according to the user the actual current requirement
- Full closed-type optical isolation to protect the user's computer and equipment
- Professional design, two-stage signal processing, super anti-jamming
- Bipolar constant current chopper drive motor low-speed non-creeping phenomenon, noise, non-resonant region
- 5 input control, you can set limit, emergency stop, which is divided into pairs of knives
- Adopts 470U and 3300U/50V Capacitors
- 1 Channel 0-10V/PWM speed regulation signal output
Attention:
- Please connect the power supply to the power switch of 12-36 V, 8A
- The power output of 12V shall be applied to the radiator fan of 12V
- The interface of driver shall be connected with 2/4 phase, 4/6/8 leads stepper motor within 3A current
- This board can work with both unipolar and bipolar stepper motors
- The spindle motor is controlled by Parallel Interface. The voltage of the spindle motor must comply with the scope of the supply voltage.

Specifications

Electrical properties (ambient temperature Tj = 25 pm)

Input Power

12 - 36V DC power supply

Stepper motor drive current

3A (peak value 3.5A)/axis

Drive type

Double-pole constant flow PWM actuation output

Compatible Stepper motors

2/4 Phase, 4/6/8 leads stepper motors within 3.5A

LCD Display board

Features:
- Can be connected to 3/4/5 axis CNC Engraving Stepper Motor Driver
- with memory function, tracking computer data synchronously
- 0.01mm accuracy,can be operated off line



 Package list:

Specfications:
- four axis coord 5 digit display(999.999MM(IN)/-999.999MM(IN)
- display data in realtime,facilitate operation when computer offline suddenly
- tracking computer data in offline mode
- Comes with a connect cable cord(0.3m)

Manual handle controller

Descriptions:
- Can switch computer control and manual control automatically without any interference
- Self check function:manual operate function will be stop atomatically when system operated by computer
- Adjust operating speed of any axes seperately
- 5 Ch pulse generator,can adjust pulse width with manual operation
- four axis CW/CCW control,facilitate tool setting,displacement and offline operating sevice
- 1-2 function broadening buttons,develops fifth axes control button
- with indicate LED light, shows operating mode
- with jerk button
- Comes with a 1.5m length handle connect cable

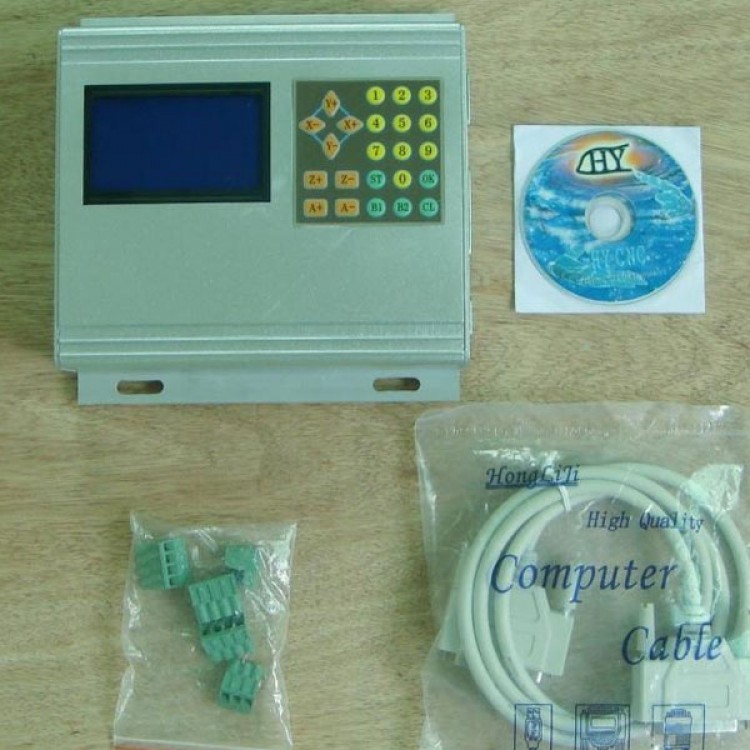

-1 * 3 Axis TB6560 Stepper Motor Driver+digital LCD Display Board+Maunual Handle Controller
- 1 * DB25 parallel cable
- 5 * Wire connectors
- 1 * CD software(English Manual & Mach 3)
