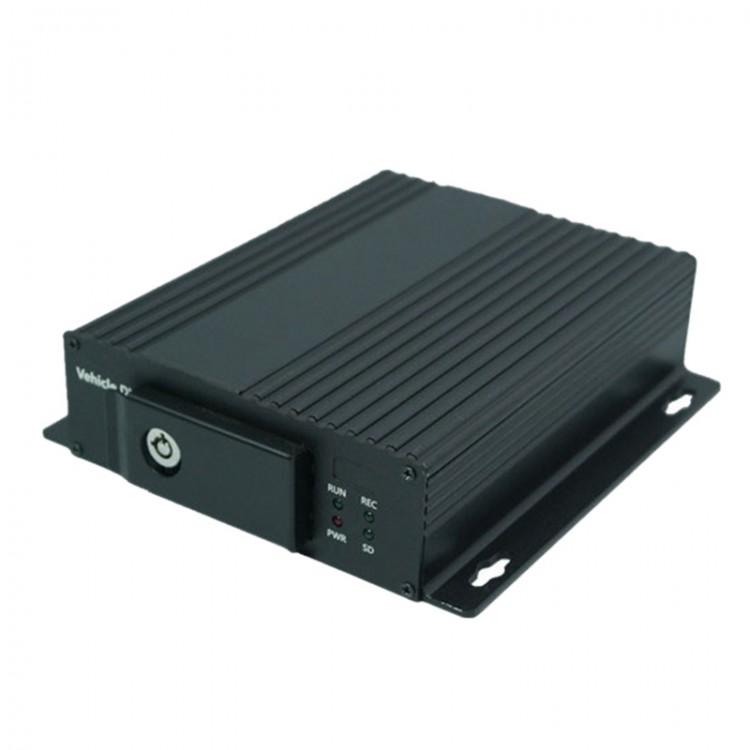

4 Channel D1 H264 HD Car Video Recorder Monitoring SD Card HD DVR

4 Channel D1 H264 HD Car Video Recorder Monitoring SD Card HD DVR

Description:
HD 4 channels D1 recorder for different cars with dual DDR chip, H.264 compressed format for the server PC DVR.

MDVR product specification:
- Operating interface: Graphical menu (OSD menu)
- Password safety: User password,administrator password
- Video input: 4 channels composite video input
- Video output: Single channel  composite video output
- Stadard: PAL, NTSC
- Display: Single image, four  image
- Image composite:H.264 Main profile
- Audio input: 4 channels audio input
- Audio output: Single audio output
- Recording mode:Audio and video is synchronization recording
- Image format: CIF/HD1/D1 (OPTIONAL)
- Video stream standard:ISO14496-10
- Video bit rate: CIF: 1024Kbps-128Kbps;HD1:2048Kbps-380Kbps; D1:2048Kbps-400Kbps
- Audio bit rate: 8KB/S
- Data storage: Support 64GB SD card (Max.) or 1TB HD
-Alarm input: 4*alarm inputs, low level alarm for 4V and the below, high level alarm for that is over 4V
- CommunicationL: RS232 interface*1
- PC end playback analysis
- Support SD card upgrade

MDVR parameters:
- Power supply input: 8-48V
- Output: 12V, the maximum current: 3A
- Car key signal: <=8V,OFF; >=9V, ON
- Video input resistance: 75Ohm
- Video output voltage: 2Vp-p
- I/O interface: 0-4V, low level alarm; >4V high level alarm
- SD card interface*1
- Operating temperature: -40~80 deg C

MDVR front panel interfaces:
- Indicator light: RUN
- ALM: Warning light
- REC: Recording
- PWR: Power light
- 3G: When the 3G module is available
- SD: When the SD card is available
- IR: Infared receiving head
- LOCK: When the device is working, the electronic lock is on, system will unloading SD card, and will load the recording after a minute

Package included:
- 1 x Recorder
- 1 x Power supply cable
- 1 x Video output cable
- 1 x Video input cable
- 1 x Remote controller
- 1 x Manual/warranty card/certificate
- 1 x Key
