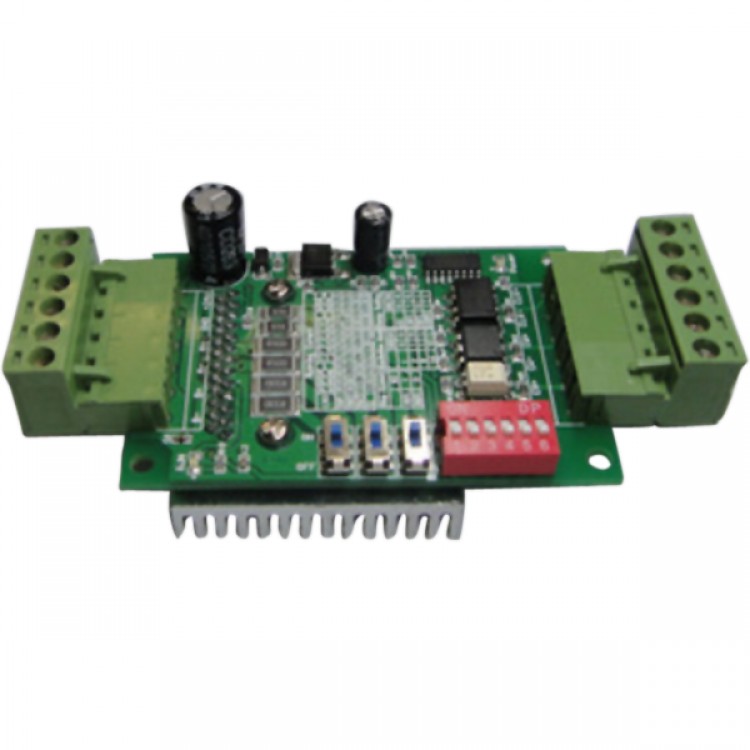

42 57 Stepper Motor Driver Board TB6560 3 A 10 File Current Adjustment
- working voltage dc 10 V-35 V. Suggest using switch power DC24V power supply.
- using 6 N137
- with the Toshiba TB6560AHQ new original chip, with low voltage shut off, overheating parking and over current protection circuit, ensure optimal performance.
- rated maximum output for: ± 3 A, peak 3.5 A.
- suitable for 42,57,86 step 3 within A two-phase/four phase/four line/six line stepping motor, not suitable for more than 3 A stepping motor.
- Automatic half flow function.
- Segment: the whole step, half step, 1/8 step, 1/16 step，Max up to 16 subdivision.
- Size:: wide 50 * length108 * height 35 (MM)
