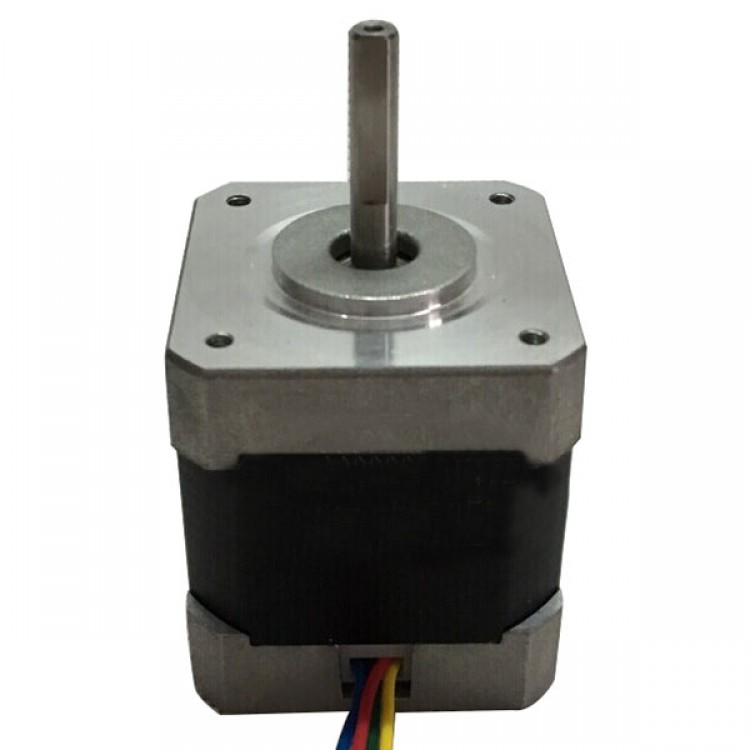

42BYGH40 Stepper Motor 1.7A Static Torque 0.36Nm 1.8Degree 3D Printer

Availability: In stock, usually dispatched in 1 business day

  • Price:$14.70
  • Price in reward points: 147 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $14.41 $14.11 $13.67 $13.08 Contact US
Quantity:

42BYGH40 Stepper Motor 1.7A Static Torque 0.36Nm 1.8Degree 3D Printer

Description:

- Length: 40mm
- Current: 1.2A/ 1.7A
- Torque: 0.36N/M  4 cables
- Axis dia: 5mm
- Voltage: 2.8V
- Current: 1.68A
- Resistance: 1.65 ohm
- Inductance: 3.2mH
- Static moments: 3.6kg/cm
- Outlet: 4
- Moment of inertia: 54g/cm²
- Motor weight: 0.28kg
- Detent torque: 150KG/cm
- Length: 40mm

Note:
- The motor axis has different types, default sending 23MM D type axis, leading wires, if you have different demand on specification, please be sure to notice us when placing the order
- Motor axis length has 13mm round axis/ 20mm round axis/ 23mm round axis/ 23mm D type axis
- Motor cable: lead wire/ plug wire / with 30cm cable
