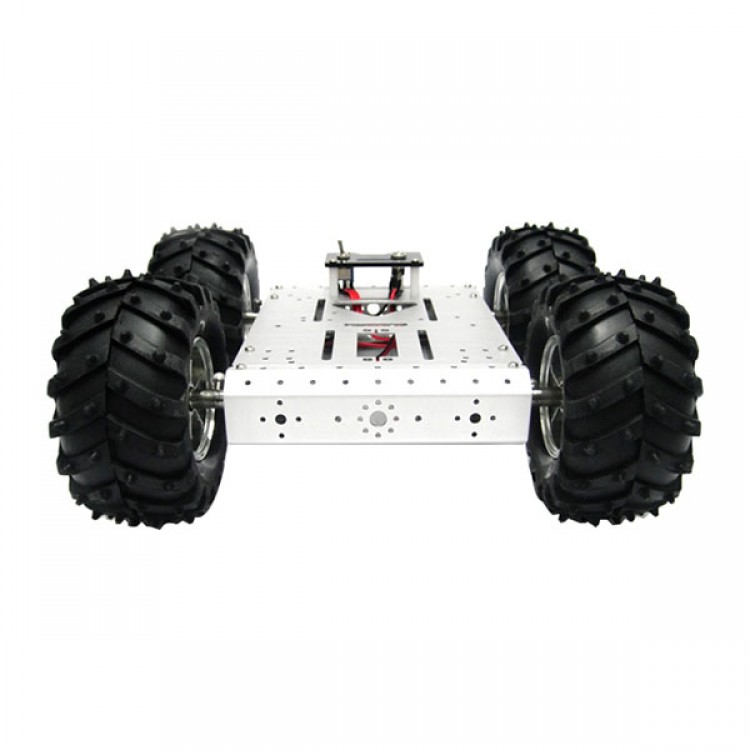

4WD Aluminum Mobile Robot Platform Car chassis Robot Chassis Robot Vehicles Heavy Duty

Introduction:
 - 2013 latest 4WD aluminum mobile robot platform. can hold many controllers, drivers, sensors and RFmodules etc, support plate with controller mounting holes, 2 dof pan and tilt holddown groove, collision switch mounting hole, an be added with sensors.light weight, high strength and no deformation characteristics. unique design and colour,cool feeling.elastic rubber tyres, with damping, wear-resisting, grip strong charastics. 3 colours to choose.

Specifications:
- Robot kit
- No-load speed: 120rpm
- Wheel diameter: 120mm
- Wheel width: 60mm
- Platform weight: 1280g

Specifications:
- Wheel diameter: 120mm
- Wheel width: 60mm
- Platform length: 206mm
- Platform width: 200mm
- Platform height: 120mm
- Platform Weight: 1280g
- Chassis from the ground distance: 26mm
- The motor rated voltage: 12VDC
- The motor no-load speed: 120 r / min
- The motor rated speed: 108 rpm / min11
- The motor gear box Length: 19mm
- The motor rated current: 0.37A
- The motor rated torque: 26.8mN.m14
- The maximum motor torque: 55.3mN.m

Package includes:
- 1* 4WD upper support board
- 1* 4WD lower support board
- 1* 4WD front plate
- 1* 4WD Back plate
- 1* Left fixed plate
- 1* Right fixed plate
- 1* Power switch interface board
- 1* Power toggle switch
- 1* Battery charging interface
- 1* Heat shrinkable tube
- 5* Black Tie
- 3* Connection cable (red)
- 2* Connection cable (black)
- 4* 12V/100R DC gear motor
- 4* Rubber wheel
- 4* Metal coupling
- 8* Motor connection cable
- 28* Screws M3*6
- 4* Nut
- 4* M3*6 Nylon column
- 1* Hexagon wrench
