• 5.8G 14dBi Pad Antenna FPC Telemetry Antenna for Fixed Wing Multi-axis

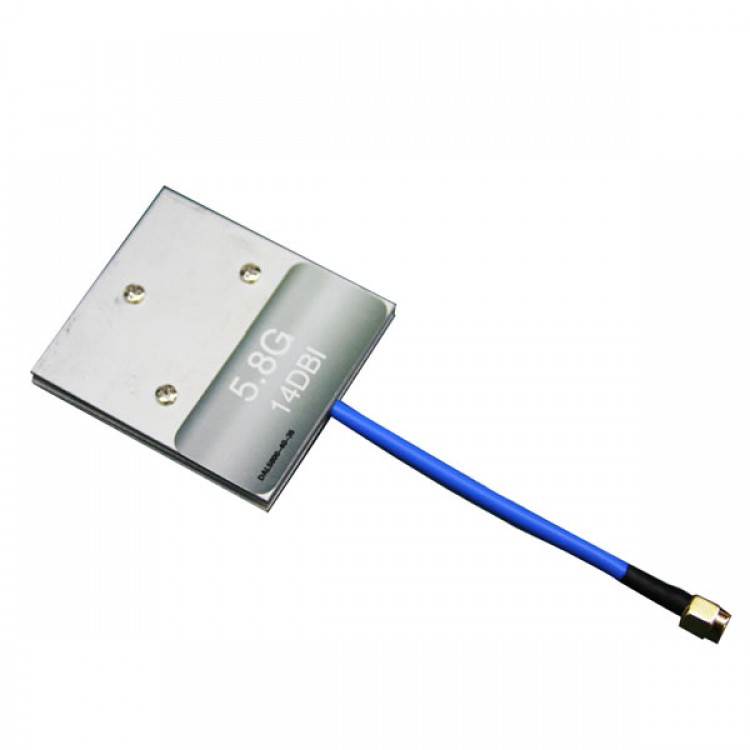

5.8G 14dBi Pad Antenna FPC Telemetry Antenna for Fixed Wing Multi-axis

Availability: In stock, usually dispatched in 1 business day

  • Price:$27.02
  • Price in reward points: 270 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $26.48 $25.94 $25.13 $24.05 Contact US
Quantity:

5.8G 14dBi Pad Antenna FPC Telemetry Antenna for Fixed Wing Multi-axis

Description:

- This 5100-8900MHz customized pad antenna, applied for 5.8GHz telemtry system, can be used as horizontal and vertical polarization
- Gain reach as high as 14dBi
- Azimuth plane and pitch plane beamwidth is about 40 degree

Features:
- 5.8G video image transmission system
- H and E side wide cover angle
- High gain
- Satisfy RoHS standard

Parameters:
- Frequency range: 5100-5900 MHz
- Gain: 14dBi
- SWR: <=1.5
- 3dB horizontal lobe width: 40degree
- 3dB vertical lobe width: 37degree
 - Polarization mode: horizontal or vertical
- Front to back ratio: 25dB
- First side lobe suppression: >13dB
- Max power: 50W
- Resistance: 50ohm
- Lightningprotection: DC Grounded

Mechanical parameters:
- Port type: RPMSA male or customer requierd
- Diemnsion: 61.5*55*6mm
- Antenna weight: 30g
- Anetenna material: compound electromagnetic material
- Temp: -40---65degree
