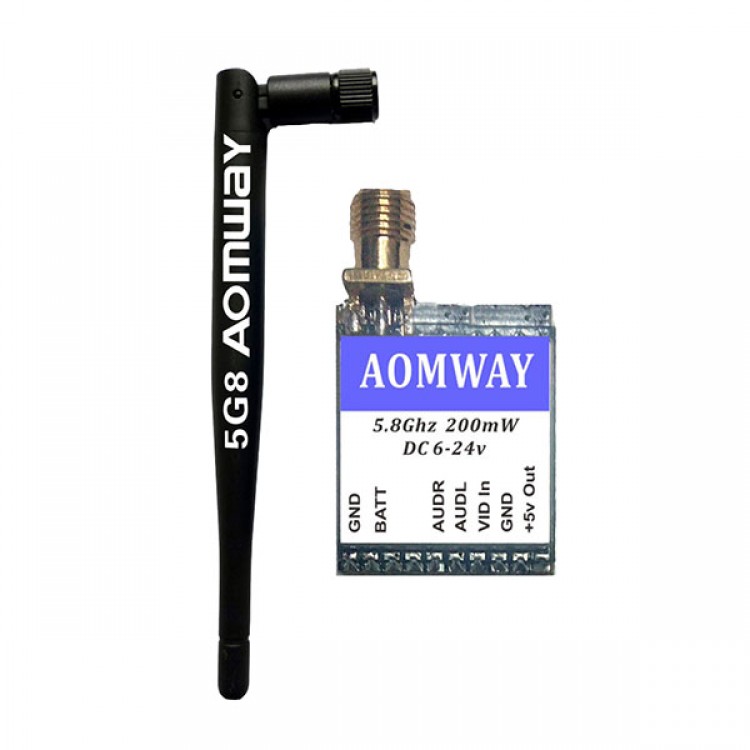

5.8G 200MW Wireless Telemetry Transmitter TX for FPV Photography
5.8G 200MW Transmitter Features:
- 5.8g wide FM audio video simultaneous transmission
- Large transmission power 200mw 22db
- Built in two types optional frequency: 5740-5860MHz / 5705-5925MHz .
- 15 transmission channel CH1-7+CH1-8
- Small size, light weight, 14g
- Stereo sound, left and right channel transmitting sound independently
- DTTB PAL/ NTSC
- Input voltage is wide: DC7-16V
- 4P SMT switch adjusting frequency point and channel
PIN7 PIN8 PIN9 Frequency 1 Frequency 2
S1-1 S1-2 S1-3 S1_4 TO OPEN S1_4 TO GND
0 0 0 5740MHz (CH1) 5705MHz（CH1)
1 0 0 5760MHz (CH2) 5685MHz (CH2)
0 1 0 5780MHz (CH3) 5665MHz (CH3)
1 1 0 5800MHz (CH4) 5645MHz (CH4)
0 0 1 5820MHz (CH5) 5885MHz (CH5)
1 0 1 5840MHz (CH6) 5905MHz (CH6)
0 1 1 5860MHz (CH7) 5925MHz (CH7)
1 1 1 - 5945MHz （CH8)
