5.8G Antenna Circular Polarized Patch 8dB RHCP for QAV250 Quadcopter FPV Fixed Wing Drone

Availability: In stock, usually dispatched in 1 business day

  • Price:$44.82
  • Price in reward points: 448 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $43.92 $43.03 $41.68 $39.89 Contact US
Quantity:

5.8G Antenna Circular Polarized Patch 8dB RHCP for QAV250 Quadcopter FPV Fixed Wing Drone

Description:

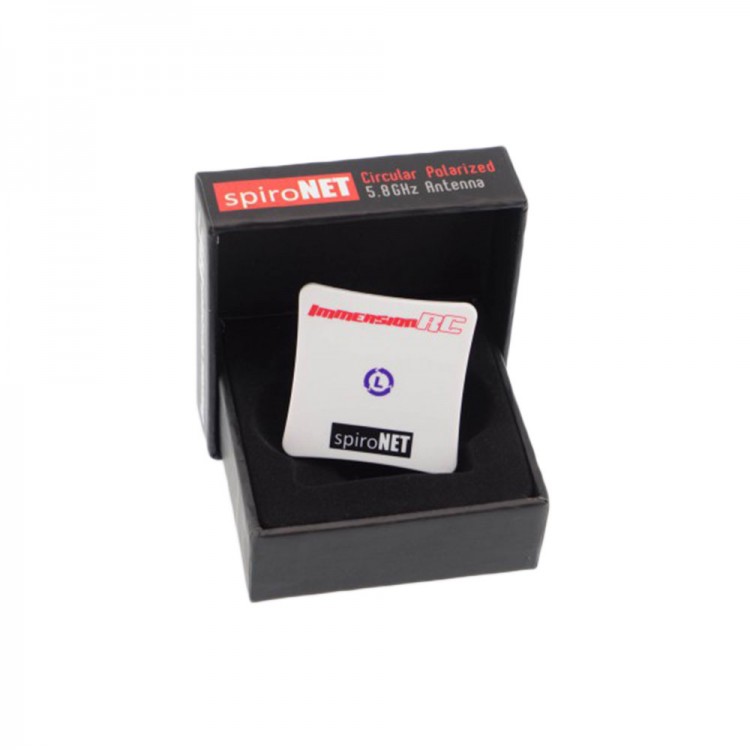

This 5.8GHz Right-Hand (RHCP) Circular Polarized patch antenna was custom-designed, with no expense spared, for the FPV market. Light enough to be mounted directly onto an LCD headset, or directly onto the front of one of our Uno, or Duo receivers.

Precision manufactured with very tight tolerances. Each antenna is 100% tested on a professional antenna tester (Rhode & Schwartz) to ensure maximum range and performance

SMA male connector compatible with all FatShark/ImmersionRC 5.8GHz products sold to date.

Specification:
- Right-Hand circular polarization
- 5.8GHz ISM
- 8dBi gain
- Beam width -3dB at +/- 45 degrees (H + V) (90 degree total)
- F/B Ratio >356dB
- VSWR < 1:1.35 at 5800MHz
- Impedance 50 ohms
- Weight 7g

Package Include:
- 1 x Immersion RC SpiroNet 8dBi RHCP Antenna
