5.8G FPV TX+RX Transmitte​r / Receiver 500mW 4Km For RC Aircaft Multirotor Helicopter

Specification:
- 5.8G broadband audio and video synchronization FM transmitter
- Small size SMD package: 75 × 26 × 26 mm
- Low power consumption: 12V 550mA
- High Output Power: 28dBm (typical)
- Built-in high-frequency PLL stability
- low harmonic radiation
- direct input analog audio and video signals

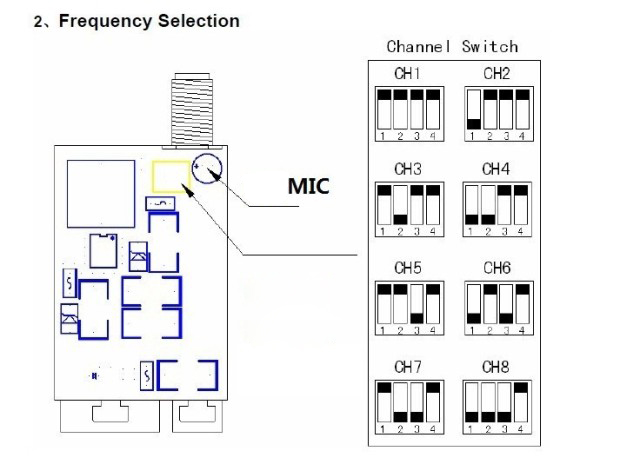

- 8-channel transmitter
- Light weight: 60 grams with antenna



Receiver -RC805
- Receive Frequency: 5725-5865MHz; 8 channels
- Receiver sensitivity:-90dBm
- Frequency Control: Built-in PLL
- Dual AV output: output analog audio and video signals directly
- antenna interface: SMA (the pin)
- supply voltage: 6.5-15V
- Supply Current: 150mA
- Dimension: 61 * 52 * 13mm
