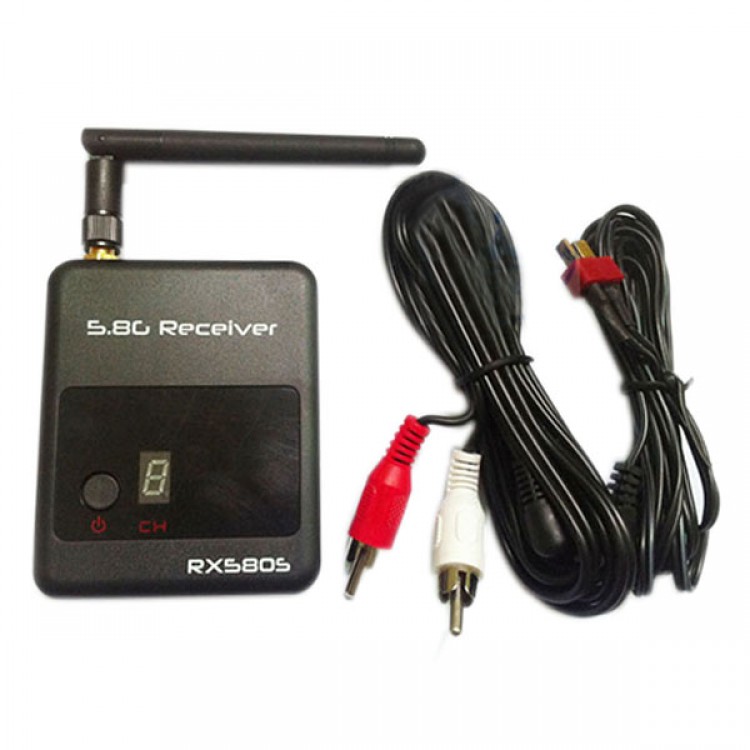

• 5.8G Telemetry Wireless Receiver RX580s 8CH LED Digital Display for Multicopter FPV Photography

5.8G Telemetry Wireless Receiver RX580s 8CH LED Digital Display for Multicopter FPV Photography

Availability: In stock, usually dispatched in 1 business day

  • Price:$37.01
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $0.00 $0.00 $0.00 $0.00 Contact US
Quantity:

5.8G Telemetry Wireless Receiver RX580s 8CH LED Digital Display for Multicopter FPV Photography

Specifications:

5.8GHz Double Output Receiver
1 Video format NTSC/PAL

2 Characteristics Value Units
3 Min Typ Max
4 ANT Input Impedance   50   Ohm
5 Video Output Channel   2     2 Buffer Output
Video Output Level    1   Vp-p 75 ohm load
6 Audio Distortion   1 3 %
Audio Output Level    1 2 Vp-p
7 Audio Subcarrier   6.5   Mhz
8 Sensitivity    -90   dbm
9 Channel Frequency
CH1   5705   MHZ
CH2   5685   MHZ
CH3   5665   MHZ
CH4   5645   MHZ
CH5   5885   MHZ
CH6   5905   MHZ
CH7   5925   MHZ
CH8   5945   MHZ
10 Channel Switching TACT Switch 7-seg Display
11 Operating Voltage (DC) 7   12.8 V
12 Supply Current 190 200 220 mA
13 SIZE 82*65*0.7 mm
14 Weight  57 g


Package includes:
- 5.8G transmitter x 1
- AV cable x 1
- Power cable x 1
