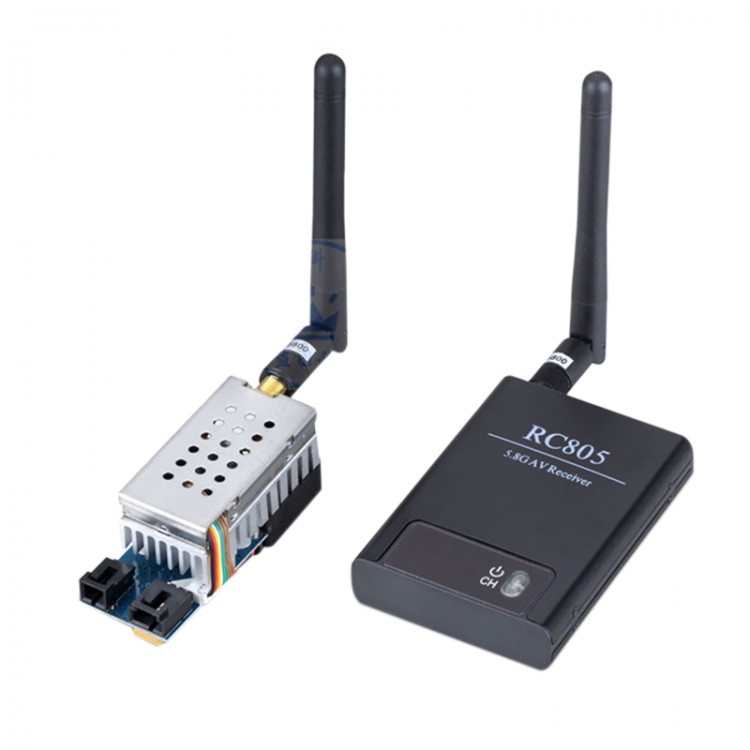

5.8Ghz 1W 1000MW 8CH Wireless Video Audio RC Transmitter TS581000 and RC805 Reciever Combo for RC Quadcopter

5.8Ghz 1W 1000MW 8CH Wireless Video Audio RC Transmitter TS581000 and RC805 Reciever Combo for RC Quadcopter

Description:
1000MW transmitter module adopts wide dynamic 7-15V power supply (support 2-4S lithium battery), but 3S battery or 12V regulated power supply module should be available for camera sake, comes with mic microphone, small volume. MIC sound transmission, to adjust the sound volume size, please adjust the MIC side of the potentiometer

Transmitter features:
- 5.8GHz video / audio synchronous transmission (compatible with PAL and NTSC)
- Compact structure, small volume, high emission power
- Integrated micro air cooling radiator, the heat is less, high work efficiency .
- Large-scale integrated circuits, high reliability
- Working voltage DC 7V-15V
- 8 working channels, DIP switch option settings
- Built in frequency phase locked loop, low harmonic radiation, high reliability and stability
- Digital locked phase  loop circuit, no temperature drift phenomenon
- Working current: 750mA
- Size: X 26mm x17mm 55mm

Operating channels:
CH1/CH5:5705/5885MHz  CH2/CH6: 5685/5905MHz
CH3/CH7: 5665/5925MH    CH4/CH8;5645/5945MHz

Features:
- Receiving sensitivity: -90dBm
- Frequency control: internal frequency phase locked loop
- Dual AV output: direct output analog audio and video signal
- Antenna interface: SMA (internal pin)
- Power supply voltage: 6.5-12V
- Power supply current: 150mA
-  Dimension: 72*56*16mm
- Feature: digital displays channel

Package included:
- 1 x 5.8GHz 1000mw Transmitter
- 1 x 5.8GHz Receiver
- 1 x TX power cable and AV cable set
- 1 x RX power cable and AV cable set
- 2 x 5.8GHz antenna
- 1 x Manual
