• 50kHz-3GHz NWT3000-2 3G 3GHz Sweep Analyzer Frequency Characteristic Tester
  • 50kHz-3GHz NWT3000-2 3G 3GHz Sweep Analyzer Frequency Characteristic Tester

50kHz-3GHz NWT3000-2 3G 3GHz Sweep Analyzer Frequency Characteristic Tester

Availability: In stock, usually dispatched in 1 business day

  • Price:$270.54
  • Price in reward points: 2705 Reward Points: 27
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $265.13 $259.72 $251.60 $240.78 Contact US
Quantity:

50kHz-3GHz NWT3000-2 3G 3GHz Sweep Analyzer Frequency Characteristic Tester

Product Description:
- 50k-3G uninterrupted full coverage sweep:50K-35M using direct detection mode;35M-3G uses frequency conversion mode
- TYPE:NWT3000-2 sweep analyzer
- Frequency range:50k-3GHz
- STEP:50k-35M/10Hz *** 35M-1G/0.25KHz;
- 1G-2G/0.5kHz *** 2G-3G/1kHz;
- RF output power:-5DBM
- MAX input power:-5dBM
- Detection: a logarithmic detector, 50k-34.99999M, direct detection, 35M-3G frequency conversion detection,
- Sweep time: 4 second/550 point
- Connect :USB/N
- POWER:DC12V/0.3A
- Control software:WINNWT4
- Size:118*64.5*23.5mm
- Weight:800 g

Application Manual:Click here

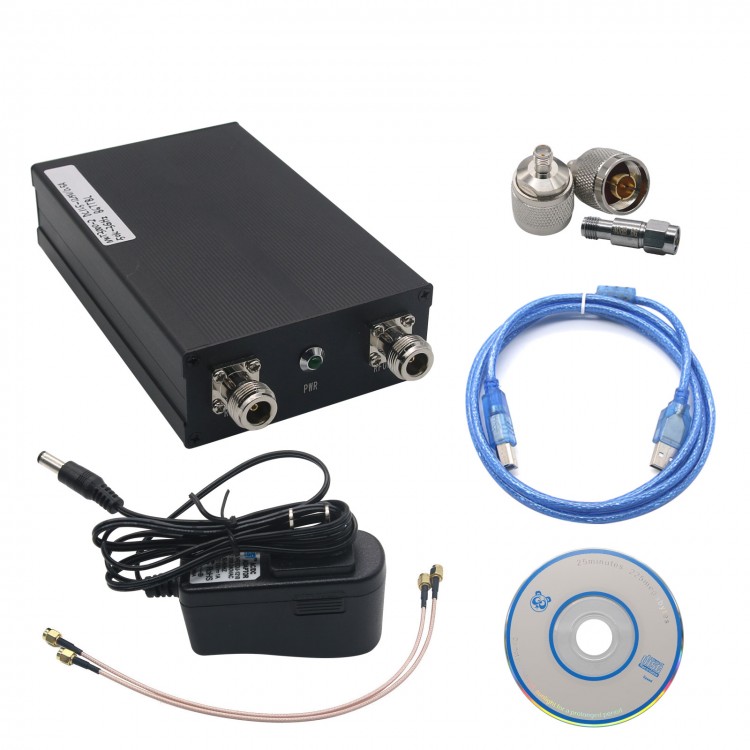

Package List:
- 1  x  50kHz-3GHz NWT3000-2 3G 3GHz Sweep Analyzer
- 1  x  USB CABLE
- 2  x  Sma  CABLE
- 1  x  DISC
- 1  x  DC-6G attenuator
- 1  x  AC220-DC12V adapter
- 2  x  N-SMA
