51 Development MCU + STM32 ARM Cortex-M3 Development Board 2 IN 2.4" TFT LCD Support AVR

Availability: Out Of Stock

  • Price:$68.85
  • Price in reward points: 689 Reward Points: 7
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $67.47 $66.10 $64.03 $61.28 Contact US
Quantity:

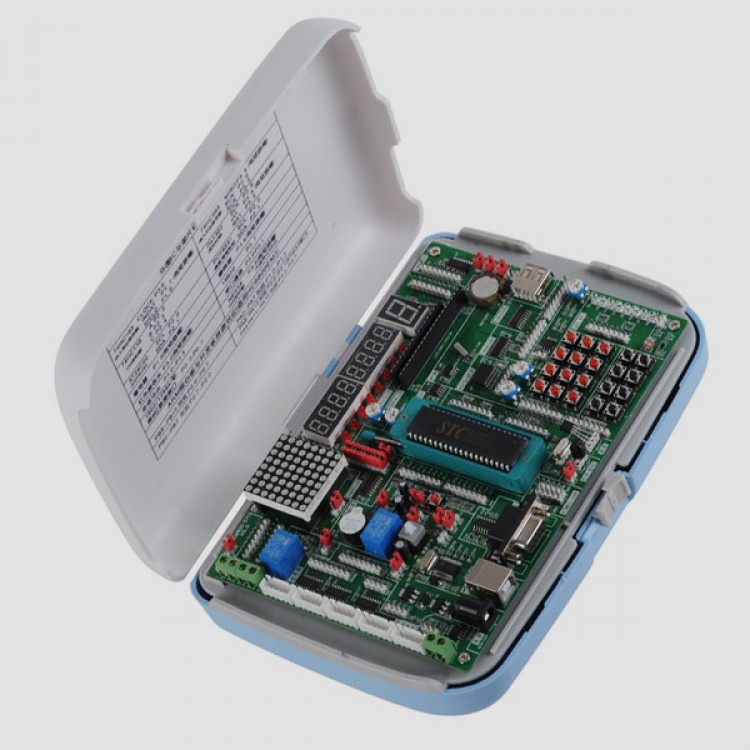

51 Development MCU + STM32 ARM Cortex-M3 Development Board 2 IN  2.4″ TFT LCD Support AVR
Description:
The ARM STM32 and 51 MCU perfect compatibility combine , which can be regarded as a professional STM32 development board, also can be regarded as a professional 51 MCU development board, they will bring you new learning experience.
Specfications:
- Use STM32F103C8T6, CPU working frequency can reach 72M,and 1.25 DMIPS/MHZ
-  0 waiting for access memorizer
- single cycle hardware multiplication and division
- 64KB Flash
- 20KB SRAM
- clock,reset and power management
- 0 to 3.6V power supply and the I/O base pin
- power on/power down reset (POR/PDR), Programmable voltage monitor (PVD)
- embedded 4 to 16 MHz high-speed crystal oscillator
- embedded 8 MHz RC oscillator
-  internal 40kHz RC oscillator
-  PLL supply CPU clock
-  32 kHz RTC oscillator with calibration
-  low-power dissipation (A: 3 kinds of energy saving mode: sleep, stop and standby mode; B:VBAT power supply for the RTC and spare register)
-  debug mode: serial line debugging (SWD) and JTAG debugging interface
-  DMA controller
- 7 channel DMA controller
- Support peripheral: timer, ADC, SPI, I2C and USART
- one of 12-bit A/D converter, 1 us the conversion time (16 channel)
- 17. as many as 80 fast I/O port
- 26/37/51/80 one of multi-function two-way 5 V compatible I/O port
- All the I/O interface can image to 16 external interruption
- as many as seven timer
- As many as three 16-bit timer, each timer has up to four for input/output compare/PWM or pulse count channel
- 16-bit 6 channel advanced control timer
A , as many as six road PWM output
B, dead zone control, edge/middle alignment waveform and emergency braking
- Two 16-bit the watchdog timer (independent and window type) system time timer: 24 bits from minus type
-  as many as nine communication interface
- two I2C interface (SMBus/PMBus)
- 3 USART interface, support ISO7816, LIN, IrDA interface and demodulation control
- two SPI synchronous serial interface (18 M/SEC)
- CAN interface (2.0 B active)
- USB2.0 interface at full speed
- 20, 2 of 12 A/D converter, 1 us the conversion time (16 channel)
- Conversion range: 0 to 3.6 V
- Double sampling keep function
- The temperature sensor (STM32 cabin temperature sensor)
- Part2 51 MCU
-  Use STC90C516RD

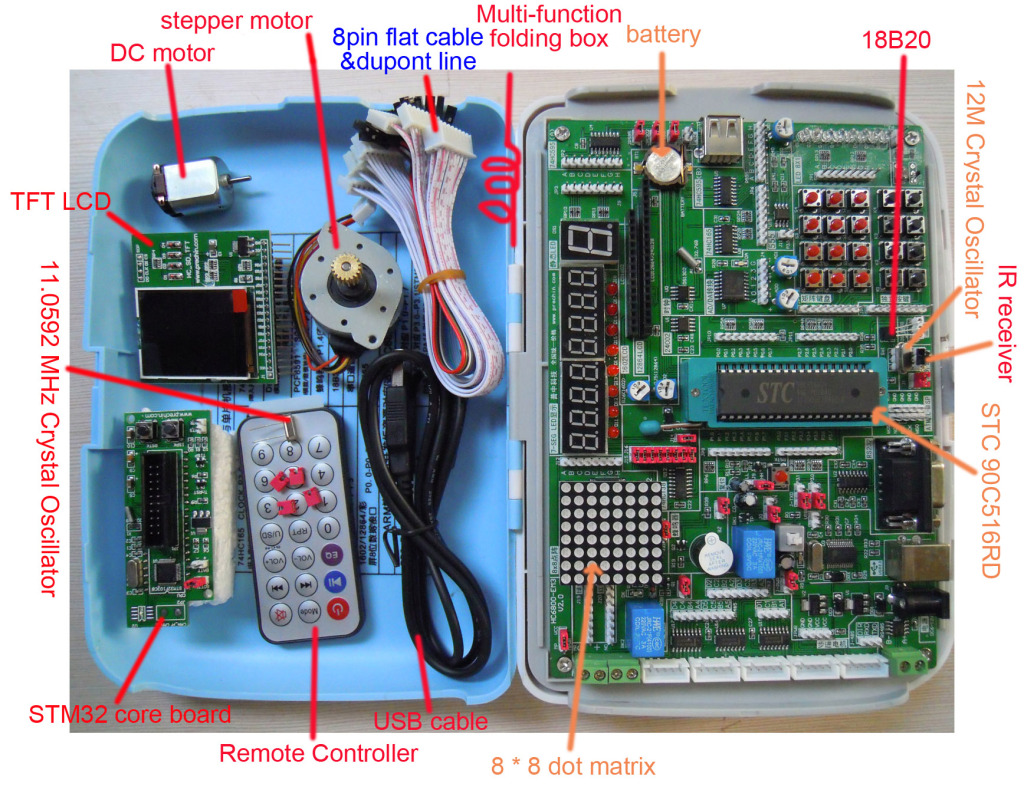

Package including:
- main board × 1

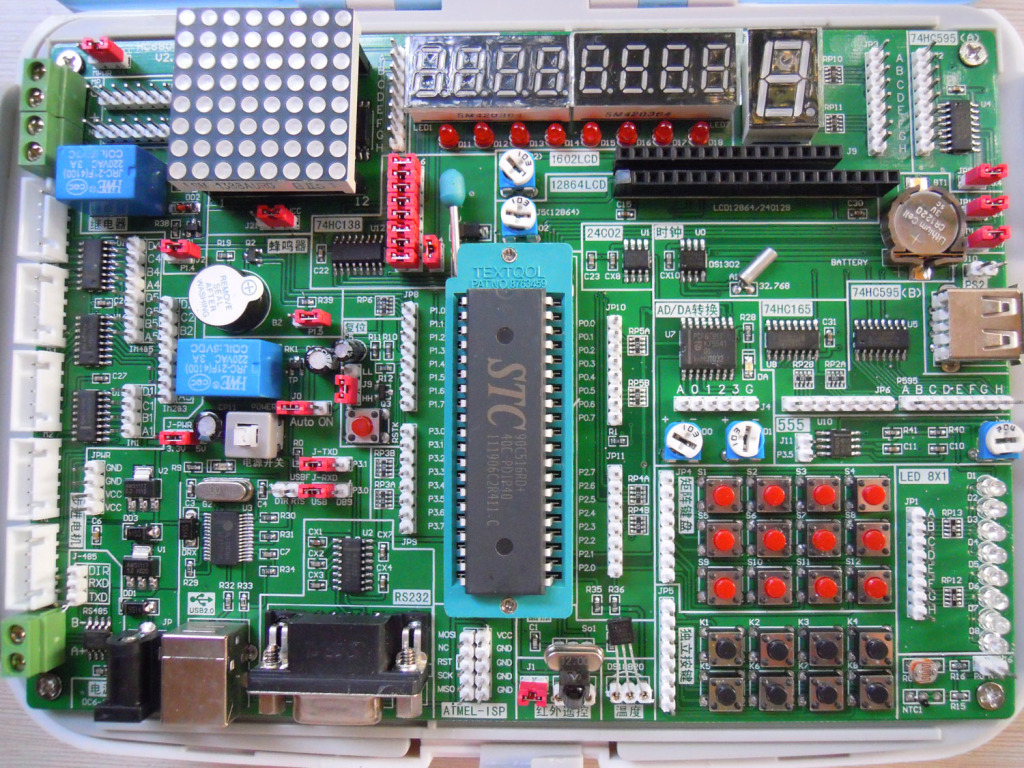

- Include on the main board:
- STC 90C516RD
- Clock battery
- two-tone 8 * 8 dot matrix
- 12M Crystal Oscillator
- IR receiver
-18B20 Temperature Sensor
- Photosensitive thermosensitive module
- Multi-function folding box × 1
- stepper motor × 1
- DC motor × 1
- IR Remote Controller × 1
- Cable include:
- USB cable × 1
- 8pin flat cable × 4
- dupont line × 8
- 11.0592 MHz Crystal Oscillator × 1
- Spare short circuit cap × 4
- 2.4″TFT LCD ( SD card integration module) × 1
- STM32 core board × 1
