| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $184.14 | $180.38 | $174.75 | $167.23 | Contact US |

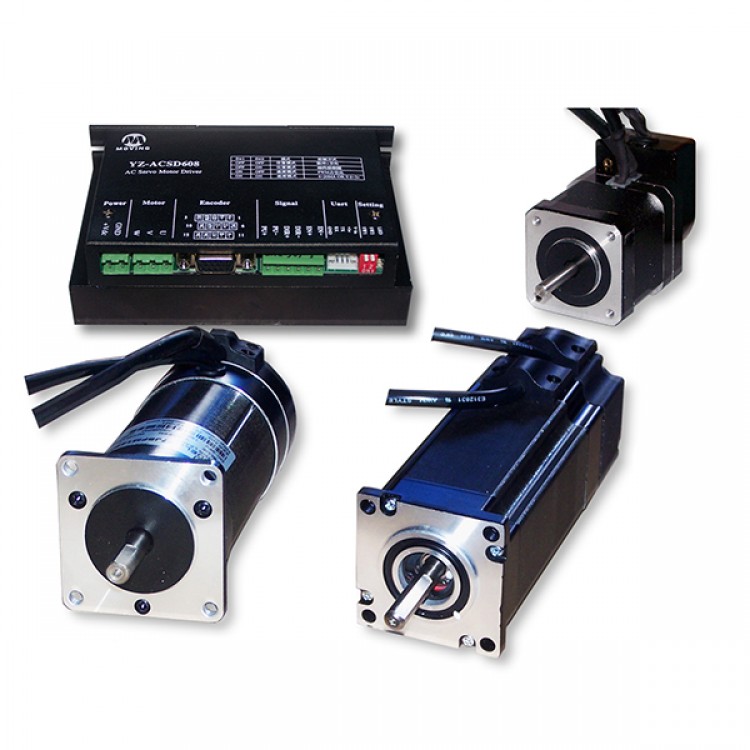

57 Round Brushless Servo Motor 24V 70W + DC Power Supply Servo Motor Driver AC Output Graving Machine Servo Combo
Specification:
- Adopting 32 high speed DSP chip
- FOC field orientation vector control, support position/speed close loop
- Position mode supports command pulse + direction, or orthogonal pulse signal
- Speed mode supports PWM duty cycle signal or 4-20ma current or 0.6-3V voltage signal control
- 16 electronic gear function, 1-65535 / 1-65535
- Power supply voltage +20V-50V. support 50-500W AC servo motor
- Support 485(modbus agreement RTU mode) controlling mode. can set up driver address, simplify controlling system, can also control it through PC and provide test software for PC
- Has undervoltage, overvoltage, locked-rotor state, overheat protection
- Provide isolated output INPOS, alarm output signal, encoder zero signal
Package list:
- 57 Round Brushless Servo Motor 24V 70W x 1
- Servo Motor Driver x 1
