• 57 Stepper Motor 57BYGH56-3A 1.2N.m 56mm Two Phase Carving Machine Large Torque Mechanical Arm
  • 57 Stepper Motor 57BYGH56-3A 1.2N.m 56mm Two Phase Carving Machine Large Torque Mechanical Arm

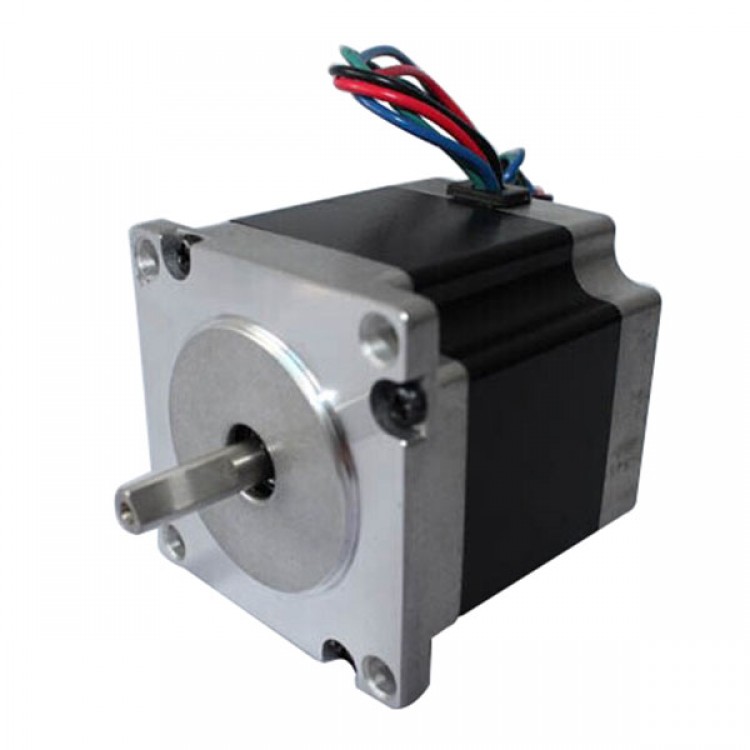

57 Stepper Motor 57BYGH56-3A 1.2N.m 56mm Two Phase Carving Machine Large Torque Mechanical Arm

Availability: In stock, usually dispatched in 1 business day

  • Price:$29.22
  • Price in reward points: 292 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $28.64 $28.05 $27.17 $26.01 Contact US
Quantity:

57 Stepper Motor 57BYGH56-3A 1.2N.m 56mm Two Phase Carving Machine Large Torque Mechanical Arm

Description:

- Length: 56mm
- Current: 2.8A
- Torque: 1.26N/M  4 cables
- Axis dia: 6.35mm, 8mm
- Voltage: 2.5V
- Resistance: 0.9 ohm
- Inductance: 2.5mH
- Static moments: 12.6kg/cm
- Outlet: 4
- Moment of inertia: 300g/cm²
- Motor weight: 0.7kg
- Holding torque: 0.4KG/cm
- Length: 56mm

Note:
- The motor axis has different types, default sending 23MM D type axis, leading wires, if you have different demand on specification, please be sure to notice us when placing the order
- Length: 20mm round axis/ 23mm D type axis/ 28mm round axis
- Motor cable: lead wire/ plug wire / with 30cm cable
