Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $40.76 | $39.93 | $38.68 | $37.02 | Contact US |

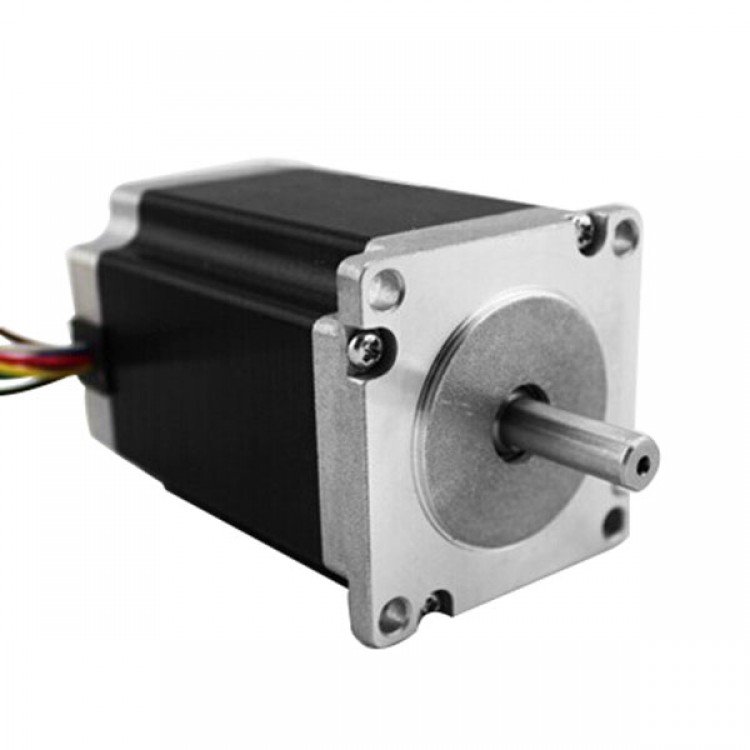

57BYGH76-2804A Stepper Motor 1.8 Degree 1.89N.m 76MM Carving Machine
Description:
- Length: 76mm
- Current: 2.8A
- Torque: 1.89N/M 4 cables
- Axis dia: 6.35mm, 8MM
- Voltage: 3.2V
- Current: 2.8A
- Resistance: 1.13 ohm
- Inductance: 3.6mH
- Static moments: 18.9kg/cm
- Outlet: 4
- Moment of inertia: 480g/cm²
- Motor weight: 1kg
- Detent torque: 0.68KG/cm
Note:
- The motor axis has different types, default sending 23MM D type axis, leading wires, if you have different demand on specification, please be sure to notice us when placing the order
- Motor axis length has 20mm round axis/ 20mm D type axis/ 28mm D type axis
- Motor cable: lead wire/ plug wire / with 30cm cable
