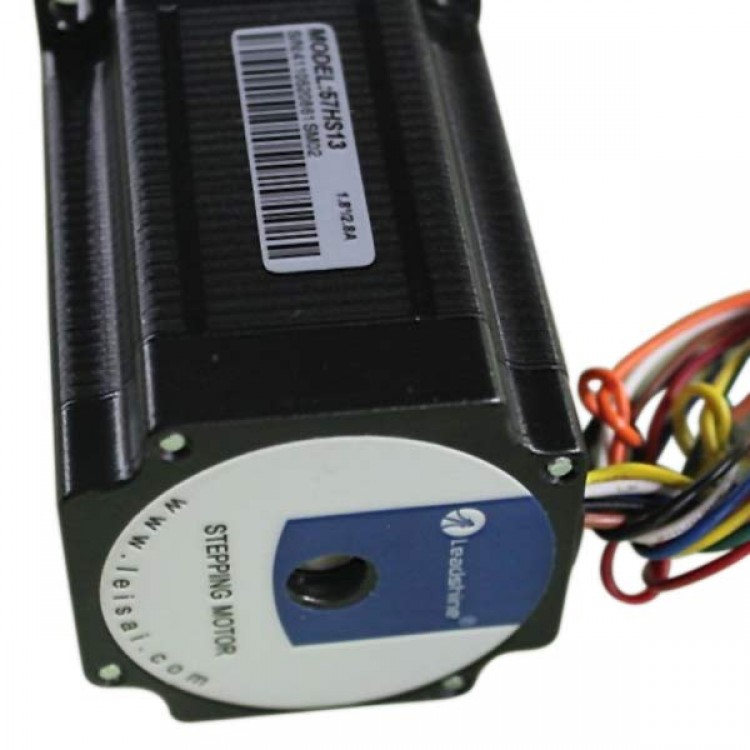

57HS13 Stepper Motor 57 Two-Phase Step Motor CNC 4A
  • 57HS13 Stepper Motor 57 Two-Phase Step Motor CNC 4A
  • 57HS13 Stepper Motor 57 Two-Phase Step Motor CNC 4A

  • SKU:15062
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 7
  • Price:$72.13
  • Price in reward points: 721
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $70.69 $69.24 $67.08 $64.20 Contact US

57HS13 Stepper Motor 57 Two-Phase Step Motor CNC 4A
Specfication:
- Step Angle Accuracy: ±5%(full step,no load)
- Temperature Rise: 80°CMax
- Ambient Temperature:  -10°C +50°C
- Insulation Resistance: 100MΩmin.500VDC
- Dielectric Strength: 500VAC for one minute
- Shaft Radial Play: 0.06 Max.(450g-load)
- Shaft Axial Play: 0.08 max.(450g-load)

Electrical Specifications:
- Model Number: 57HS13
- Step Angle  Degree(o): 1.8
- Motor Length L inch (mm): 2.99(76)
- Holding  Torque Oz-in  (Nm): 254.88(1.8) --Parallel
- Number of Leads: 8
- Phase Current  (Amps): 4.0
- Phase Resistance (Ohm): 0.5±10%
- Phase Inductance (mH): 2.1±20%
- Rotor Inertia Oz-in-sec2 (g.cm2): 0.006532(460)
- Detent Torque Oz-in (g.cm): 9.912(714)
- Weight Oz (kg): 35.27(1.0)
