57HSE2N-D25 2Nm Stepper motor + Full Closed Loop HSS86 Hybrid Servo Driver

Availability: In stock, usually dispatched in 1 business day

  • Price:$150.15
  • Price in reward points: 1502 Reward Points: 15
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $147.15 $144.14 $139.64 $133.63 Contact US
Quantity:

57HSE2N-D25 2Nm Stepper motor + Full Closed Loop HSS86 Hybrid Servo Driver

Introduction:
- 57 full close loop stepper motor driver HSS57 + motor 57HSE2N-D25 set:1000 rpm rated speed, the maximum rated speed 2000 rpm, torque 2.2NM, shaft 8MM, send 3 meters coding line, with low heating efficiency, high precision, high response and so on!
- The HBS series offers an alternative for applications requiring high performance and high reliability when the servo was the only choice, while it remains cost-effective. The system includes a 3-phase stepper motor combined with a fully digital, high performance drive and an internal encoder which is used to close the position, velocity and current loops in real time, just like servo systems. It combines the best of servo and stepper motor technologies, and delivers unique capabilities and enhancements over both, while at a fraction of the cost of a servo system.

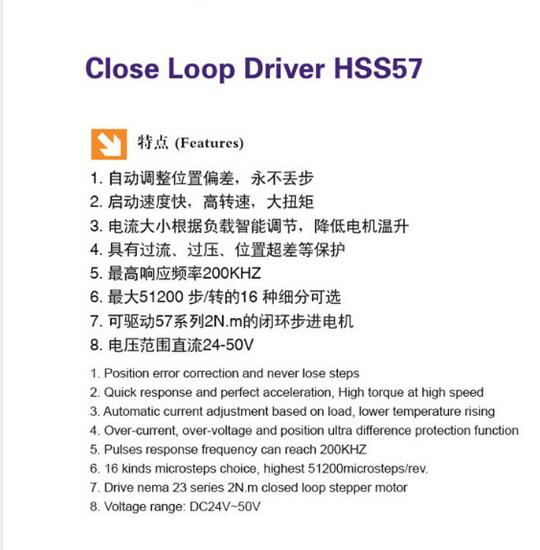

Product Feature:
- Closed-loop, eliminates loss of synchronization
- Broader operating range – higher torque and higher speed
- Reduced motor heating and more efficient
- Smooth motion and super-low motor noise
- Do not need a high torque margin
- No Tuning and always stable
- Fast response, no delay and almost no settle time
- High torque at starting and low speed, high stiffness at standstill
- Lower cost

Parameters:
- Dimensions: 57*57*96mm
- Shaft diameter: 8mm
- Torque: 2Nm
- Max.speed: 2000rpm
- Rated speed:1000rpm
- Key groove: with
- Current: 4A
- Output current:peak 5.0A (The current varies with load.)
- Logic input current:4~20mA
- Pulse frequency:0~200KHz
- Adaptive motor:57HSE2N
- Voltage:VCD24-50V
- Rated speed: 1000rpm
- Motor:32 bit motor DSP chip
- Insulation resistance:>=500M ohm
- It can drive 57 or 86 Series hybrid stepping closed loop motor
- The pulse response frequency is up to 200KHZ
- The maximum 40000 steps / RPM,16 segments are optional
- With over-current, overvoltage, position exceeding tolerance protection

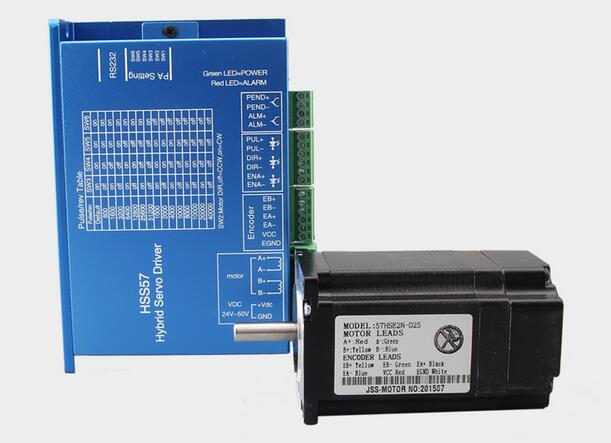

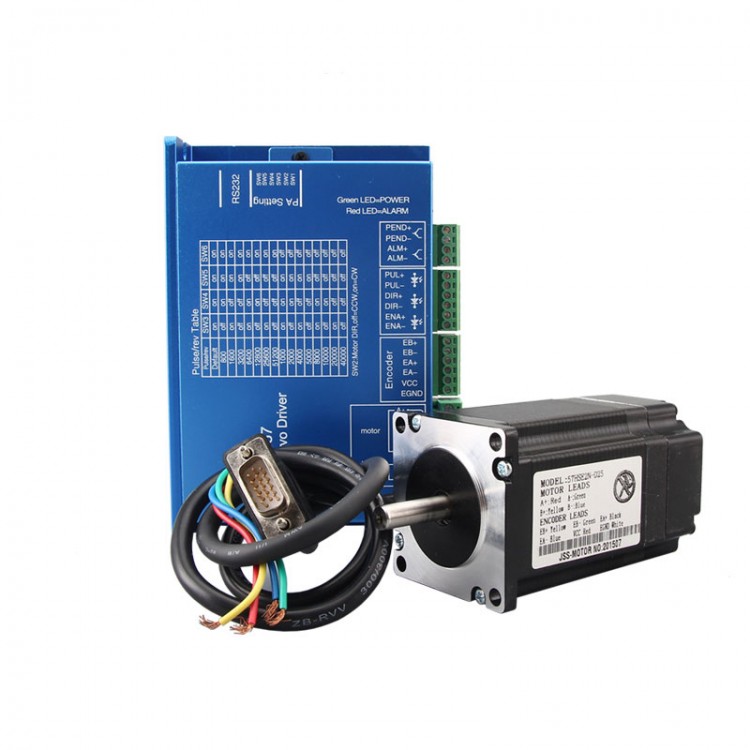

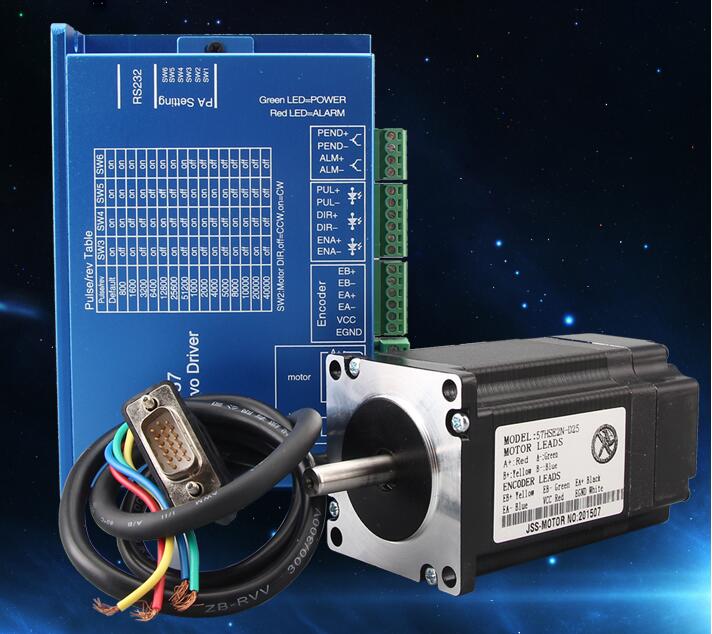

Package included:

- 1 x Closed loop servo driver HSS57

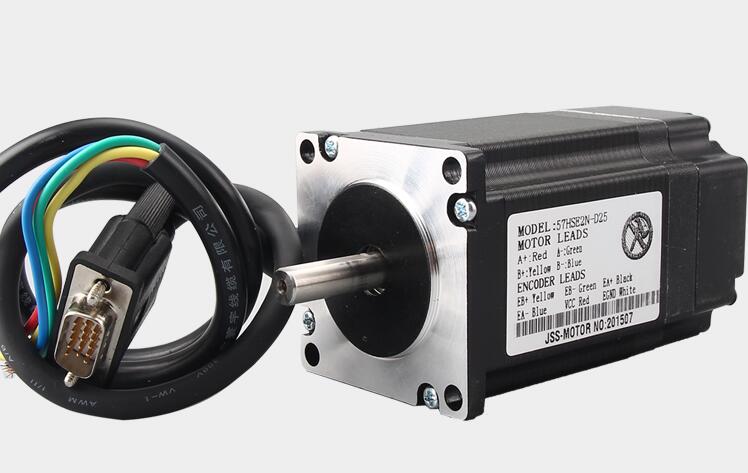

- 1 x Hrybrid servo motor 57HSE2N-D25
- 2Nm Stepper Motor
