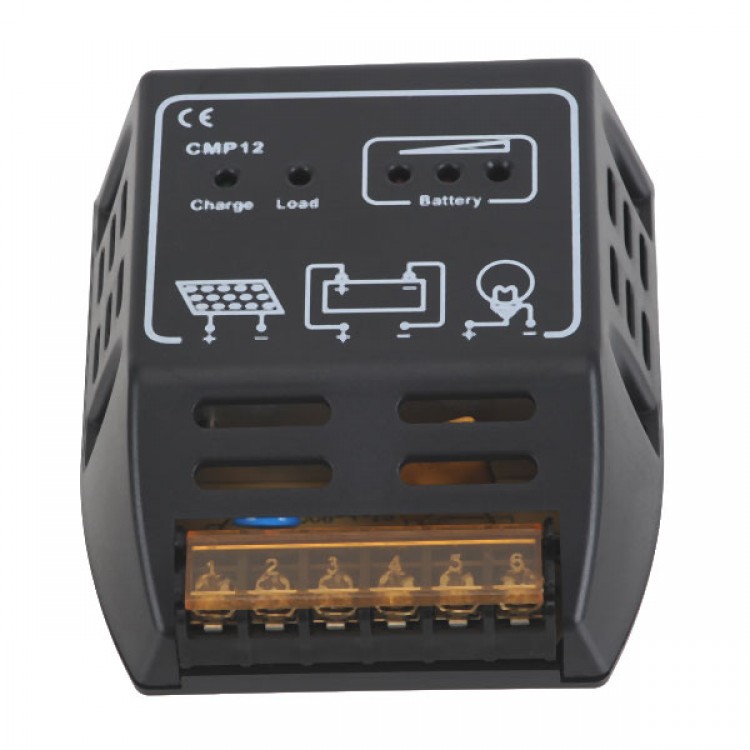

5A 12V/24V Portable Solar Panel Charger Controller DC
Description:
- This Solar Panel Charger Controller Regulator is specially designed to protect the battery, which is able to keep the battery on full voltage condition and prevent the battery from over-charging, over-discharging and supplying power to solar panels during nights.
Features:
- Generally keep the battery on full voltage condition.
- Prevent the battery from over-charging.
- Prevent the battery from over-discharging.
- Prevent the battery from supplying power to solar panels during nights.
Specfications:
- Rated voltage: 12V or 24V (Auto switch between 12v/24v, 60W/120W)
- Rated charging current: 5A
- Rated load current: 5A
- Operating temperature: -20 ~ +60°C
- Dimensions: 10 x 9.5 x 3.8cm
- Color: Blue
Parameters:
Rated voltage
|
12V or 24V
|
Voltage of stop power supply
|
*10.8V or 21.6V
|
Rated charging current
|
5A
|
Voltage of resume power supply
|
*11.8V or 23.6V
|
Rated load current
|
5A
|
Voltage of stop charging
|
*14V or 28V
|
Working temperature
|
-20 ~ +60
|
Temperature coefficient of voltage stop charge
|
-3mV/C/cell
|
Dimension (L*W*H)
|
101×95×35 mm
|
Net weight
|
120g
|
- Connection:

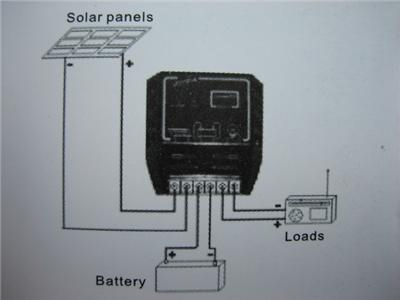

- As indicated in Diagram:
- Connect “+” and “-“ poles of solar panels with the correct ports on the controller (the first and second from the left).
- Connect”+” and “-“ poles of battery with the correct ports on the controller (the third and fourth from the left).
- Connect “+” and “-“ poles of load with the correct ports on the controller (the fifth and sixth from the left).
