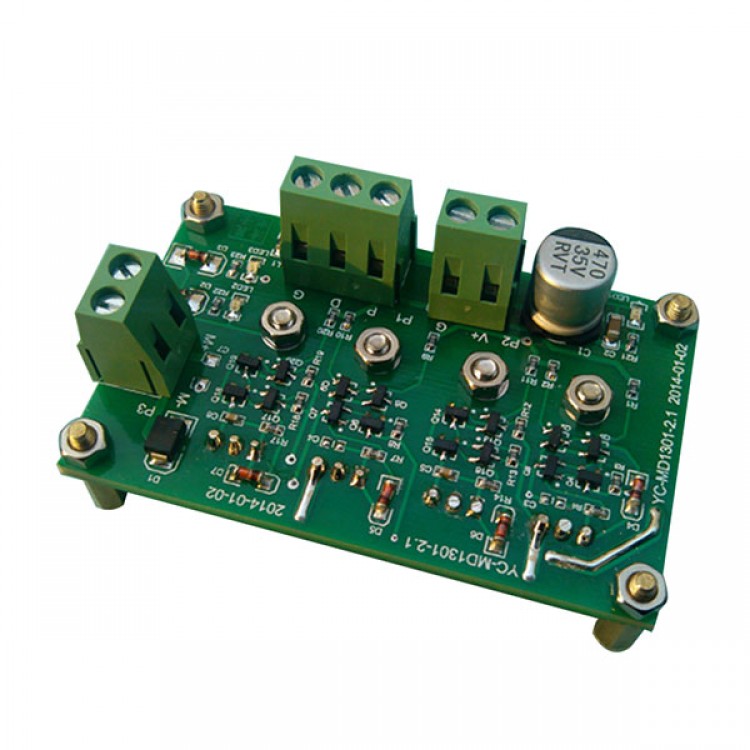

5A Singlechip DC Motor Drive Board Module Industrial Large Power MOSFET Single H Bridge w/ Braking Function

Availability: In stock, usually dispatched in 1 business day

  • Price:$11.61
  • Price in reward points: 116 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $11.38 $11.15 $10.80 $10.33 Contact US
Quantity:

5A Singlechip DC Motor Drive Board Module Industrial Large Power MOSFET Single H Bridge w/ Braking Function

Parameters:

- 12A Mosfet tube
- Logic control level: high level>2.5V, low level<0.5V
- Working temp: 40--85degree
- Dimension: 44*71*16mm
- Working mode: single road H bridge
- Drive voltage: 5-35VDC
- Drive current: 5A
- Rated power: 350W
- Weight: 30g

Features:
- Adopting industrial large power MOSFET tube, continuous current can reach 2A, transient peak current reaches 10A, low heat radiation, no need cooling fin
- Only need to supply DC motor working voltage, controlling circuit does not need any additional power
- To save controllling resource, only need MCU two road I/ O control signal, can realize PWM speed adjustment, braking and swtich CW CCW
- Compatible with 3V and 5V single chip machine
- Motor output terminal has TVS bidirectional protecting tube
