Description:

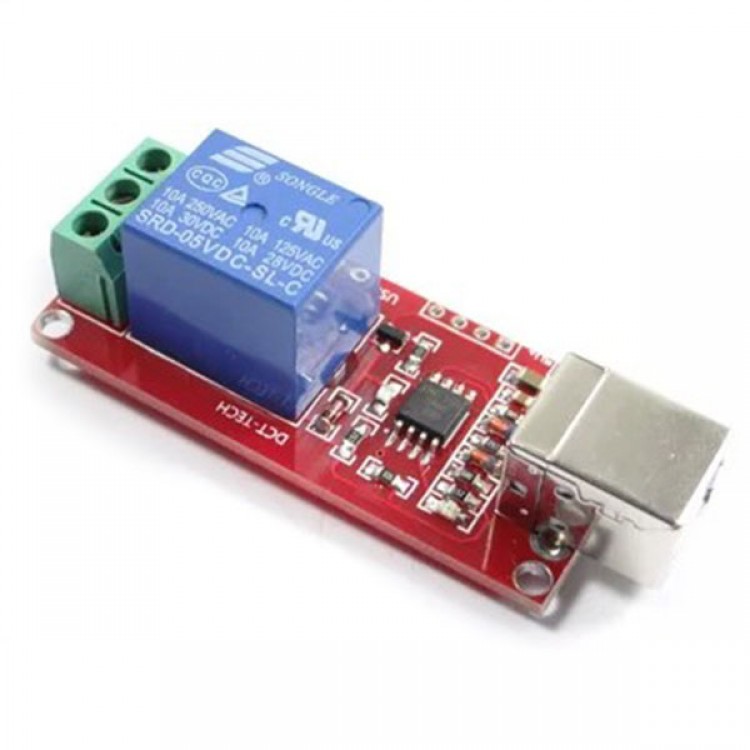

- This is USB controlled relay Board with 1  channels. It’s used the HID technology, so no need to install any driver in  windows system and you can easy to use. We also provide an application and the  C++ develop library that you can easy to integrate this module to your project.
- The relay can control the  maximum voltage 250V, 10A AC load and 30V, 10A DC load
- Support WIN7, XP 32 -bit  systems
- This module can be used:
- Home automation
- Robotics Contorl
- Control doors and windows via windows system
- Contorler power supply
- PCB SIZE: 56mm*24mm
- Module Parameter

Specification:　
- Relay Type:Songle 5V Relay
- Relay QTY:1
- Contack Type:NC/ COM/ NO
- Input Voltage:DC 5V
- Input Current:>300mA

Application

1. Supply the application code (Green indicates that the  relay is closed , the red disconnect)
2. Supply C++ lib and dll for building your own project (include  usb_relay_device.dll, usb_relay_device.lib, usb_relay_device.h).
   Open the device , the software automatically obtain the current  working state relay
