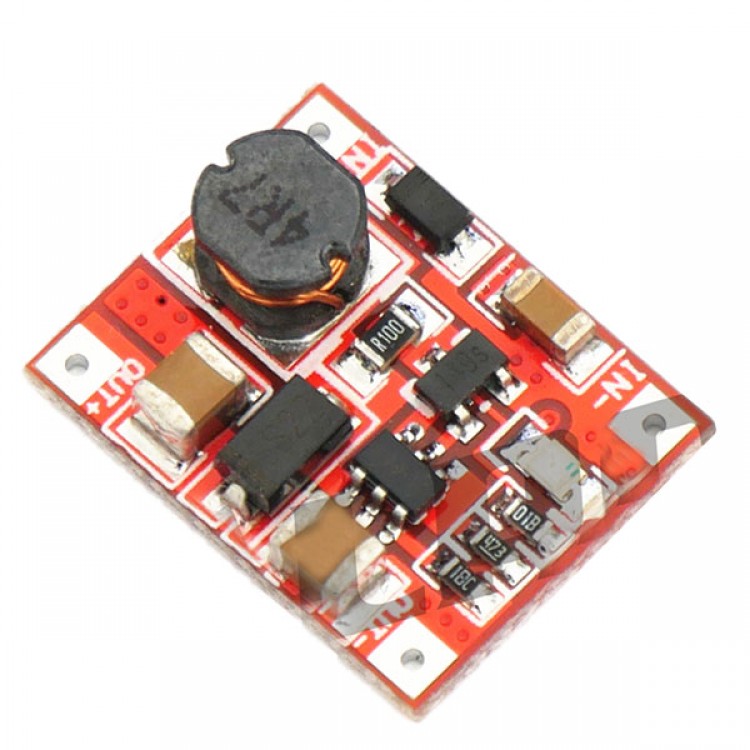

5V 1A Boost Step-up Voltage Stabilization Module 1S Battery for Mini Quadcopter
Features:
Non isolated step-up module (BOOST)
Input voltage: 1-5V
Output voltage: 5.1-5.2V
Output current: rated 1A-1.5A (single lipo battery input), max 1.5A (single lipo battery input)
The highest conversion max 96% (higher input voltage, higher the efficiency will be)
Switching frequency: 500KHz
Output: 30mV (MAX) 20M (Input 4V, output 5.1V 1A )
Undervoltage indication: load LED indicator (input voltage is lower than 2.7V LED indication lamp)
Working temperature: industrial grade (-40 DEG to +85 DEG)
Full temperature: 30 degrees
Static current: 130uA
Load adjustment rate: 1%.
Voltage adjustment rate: ±0.5%.
Dynamic response speed: 5% 200uS
Short circuit protection: no
