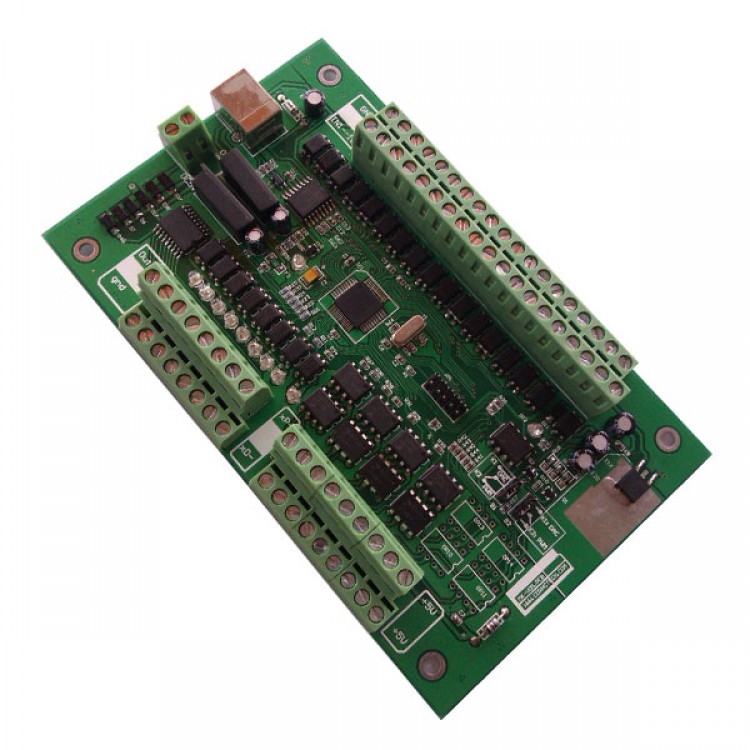

6 Axis CNC USB Card MACH3 380KHz Breakout Board Interface Adapter For Wireless CNC Handwheel



Features:
- Fully supporting all Mach3 versions
- Full support for USB hot-swappable, the card is Monitoring USB connection status at any time.
- Supports 6-axis
- Maximum step-pulse frequency is 380KHz
- Status indicator LED can be useful to show the USB connection, and working stauts by flashing.
- 16 general-purpose input
- with speed function, the spindle actual speed Mach3 interface in real-time display
- with onboard isolated power supply, no external power supply
- all IO-port isolation, interference, stable performance
- Support WHB04 wireless MPG and other Wireless handwheel



Parameter Description
- Drive Current Isolated open collector output; 5V, 20mA
- Drive Pulse :+ direction output
- Output frequency: 380KHZ
- 6 axis output control
- Isolation Voltage :3.5KV
- Output Voltage :0-10V
- Output Isolated :0-10V output
- output Isolation Voltage: 3.5KV
- Input Isolated input, 5V pulse signal
- Isolation Voltage 3.5KV
- Drive Current Isolation :50mA, 25V
- Isolation Voltage: 3.5KV
- 8 IO output
- Input Current: 16 IO input Isolated inputs, 5 mA, maximum voltage 25V
- Isolation Voltage: 3.5KV
- USB interface:Complies with USB2.0 standard

Software Down: click here

Package included:
- 1 x 6 Axis CNC USB Card MACH3 380KHz Breakout Board Interface Adapter
