600W DDBLDV1.0 Brushless DC Spindle Motor Driver Controller for CNC Engraving Machine

Description:

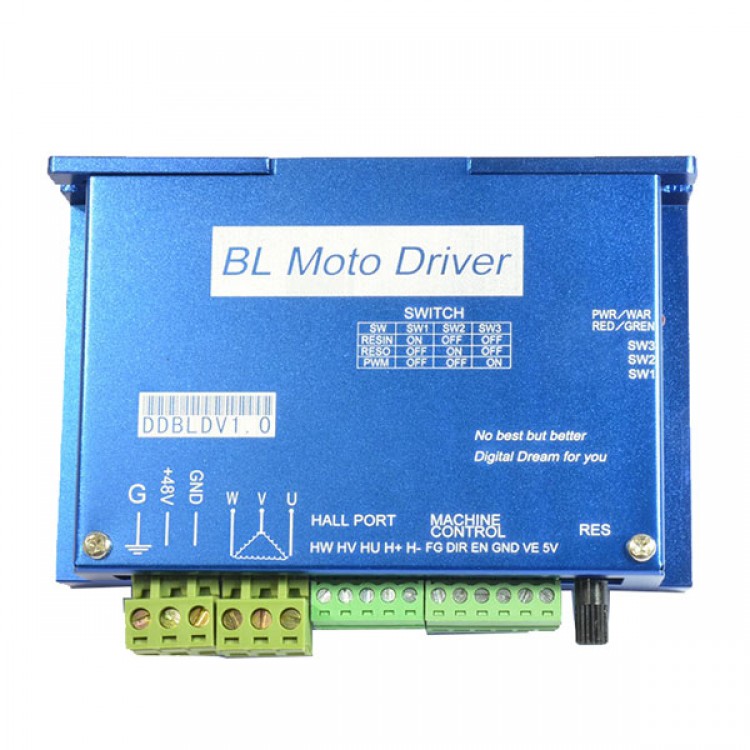

- DDBLDV1.0 is a High performance BL motor Driver with the chip SCM1243MF of SANKEN inside. It appropriate to driver little and middle power Brushless DC motor. The most power is 750W. To driver the same motor, this driver can make more speed and more power to motor. It’s control method is sample and reliable.

Specifications:
- Three-phase intelligent driver chip
- Supply voltage24~60VDC
- Input electrical signal TTL compatibility
- No current when static
- Easy to install
- Max. power output is 600W
- There are 3 methord of speed control, regulation resistance inside, voltage signal, PWM signal
- Drive BL motor the most rotation to 12000r/min
- There is speed port, it’s easy to measure the rotation of BL motor.
- There are overvoltage, overcurrent and lock rotor test inside.
- There is IPM chip SCM1243MF inside, It’s more stabilize than MOSFET.
- Weight: 250g

Download: DDBLDV1.0 Brushless DC motor Driver

Application:
- It is suitable to various kinds of small or middle size of automation equipment and instrument, like the small size engraving machine and chip mounter.
