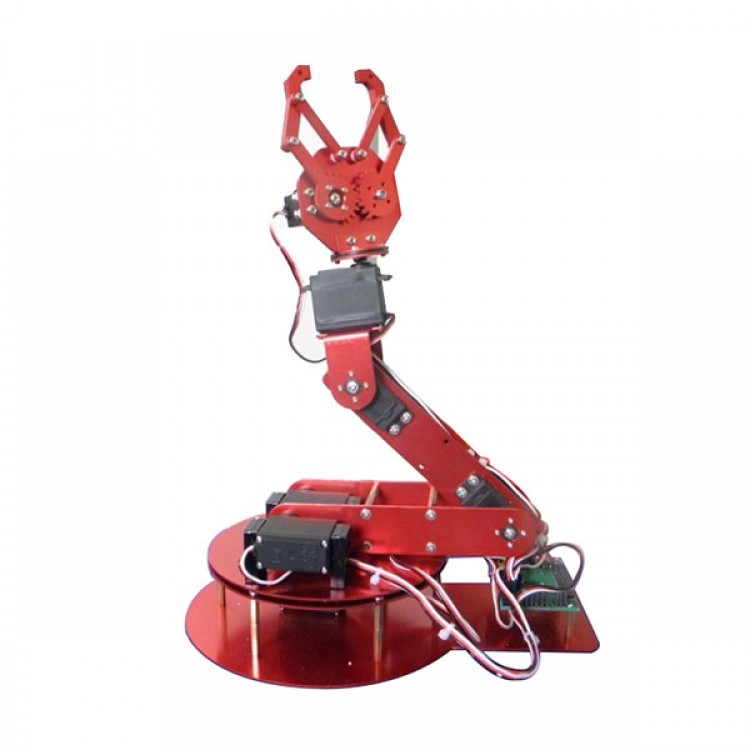

6DOF Aluminium Robotic Arm Metal Arduino Robot Teaching Platform
  • 6DOF Aluminium Robotic Arm Metal Arduino Robot Teaching Platform

  • SKU:33876
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 73
  • Price:$726.90
  • Price in reward points: 7269
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $712.36 $697.82 $676.02 $646.94 Contact US

6DOF Aluminium Robotic Arm Metal Arduino Robot Teaching Platform

Description:

- This robot arm adopts 6 servos and six 14g metal digital servo and precised aluminum alloy
- Arm length is 390mm, using 10 channel controller to control the arm action
- This controller adopts STC5410AD MCU and PC RS232 serial communication, and at the same time it can control ten servo motor
- Dual power supply (5V singlchip power supply, 4.8-7.4V servo motor supply, ISP download port is reserved, teh robot professional download cable can download MCU control programme)

Features:
- Imitate industrial robot working principle, combined with aluminum alloy perfect structure
- C language programming language, easy to learn
- Using professional downloader, convenient to download. Control Board adopts mini USB port, can record control programme at amy time
- Brand new metal support, all robot parts adopts 5 series aluminum design

Package list:
Combo content:

- Servo: KC-14M digital servo x 6
- 5 Series aluminum alloy
- 10 Channel servo sport control board
- KEIL C software (CD-ROM)
- Robot professional downloader (built in chip)
- Side AA x 6 battery pack
- User manual

Robot Specs:
- Arm length: 480mm
- Total height: 540mm
- Max lifting force:  about 200g

Digital servo specs:
- Torque: 14kg·cm
- Dimension: 40.8×20.1×38mm
- Gear: metal gear
- Weight: 56g
- Speed: 0.16-0.12sec/60°

Analog servo:
- Dimension: 31×28×14mm
- Gear: plastic gear
- Weight: 36g
- Speed: 0.16-0.12sec/60°

Side AA x 6 battery pack:
- Dimension:
- Weight: 30g
- Output: 9V 1.0A (1.5V x 6)
- Battery type: AA battery

Control board
- Singlechip : STC5410AD
- Serial interface max: 115,200bps
- Can add multi types of sensor
- Input voltage: 6-9V
- Rated voltage: 5V
- Control board dimension: 78*103mm
