6S High Precision Lipo Battery Detection Monitor Met-6

Availability: In stock, usually dispatched in 1 business day

  • Price:$20.31
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $0.00 $0.00 $0.00 $0.00 Contact US
Quantity:

6S High Precision Lipo Battery Detection Monitor Met-6

Features:

- Power battery for remote control model and receiver battery voltage and better level measurement;
- Accurate display of 2 ~ 6 cells Li-ion battery separate voltage and total voltage or 4 ~ 20 cells NiMH / NiCd total voltage;

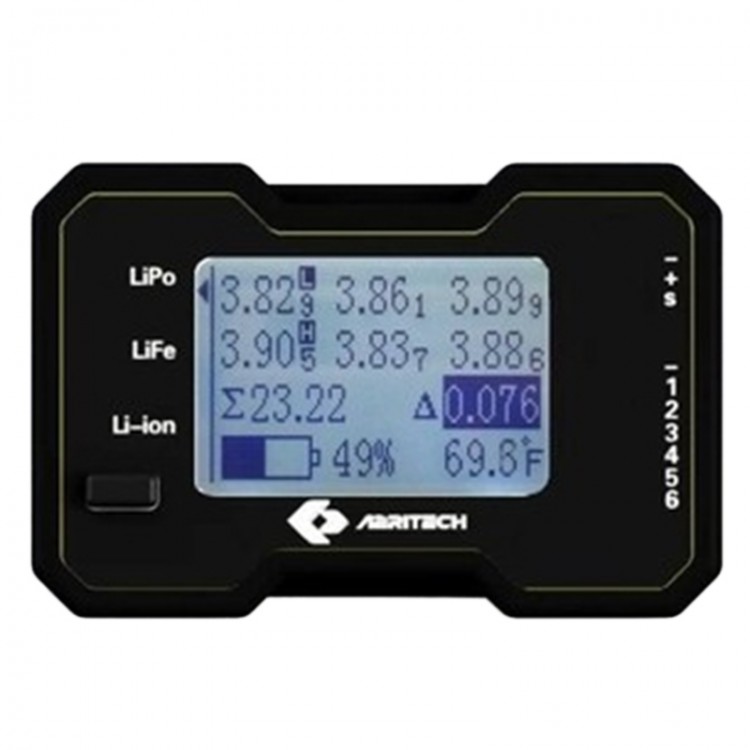

- 43mmX25mm big screen 128 * 64 dot matrix LCD. One screen can display all battery information include each separate cell voltage, total voltage Σ, maximum voltage difference Δ.
- Display the electrical quantity.
- Display the current environment temperature.
- Reverse polarity protection.

Specification:
- Fit for 2 ~ 6cells of Lipo / LiFe / Li-ion, 4 ~ 20 cells Nicd / NiMH;
- Voltage display accuracy: 0.001V; voltage measurement accuracy: 6mv;
- Cell voltage display range: 1.00 ~ 4.50V, total voltage display range: 3.50 ~ 28.00V;
- Measuring current consumption: <15mA
- Pin spacing: 2.54mm
- Dimensions: 81x45x10mm; Weight: 32g

Instructions for use:
1. Total voltage of the battery under test shall not be less than 3.30V or higher than 28V. Lower than 3.30V, the screen is not displayed. Higher than 28V, Met-6 may cause damage. Li battery cell voltage can be lower to 0V, to meet the power measurement in all cases.
2. Lixx battery measurements:
- Li battery balancing head into the Met-6 left Li balance port, pay attention to the positive and negative.
- If the anti-plug, Met-6 with reverse polarity protection, no display screen.
-  Met-6 balance port connected to the negative battery negative terminal.
- battery connected, the screen displays the cell voltage, total voltage, total voltage Σ, maximum pressure difference between monolithic Δ, the percentage of remaining battery power and display the current ambient temperature. Lipo / LiFe / Li-ion battery need three kinds to the corresponding button to select the correct gear to display the percentage of battery power, the default is Lipo.
- cell voltage from the upper left - right order of the first sheet 1,2,3,4,5,6 voltage.
- of a maximum voltage, the voltage value of the upper right corner will show H; lowest voltage a voltage value in the upper right corner will show L.
- If the maximum pressure is greater than between monolithic 20mV, Δ value will reverse display font.
3. Nicd / NiMH cell measurements: the Nixx output cable into the Met-6 left Nixx detection port, the battery pool access, the lower left corner of the screen displays the total voltage of the battery pack.
4 When any battery is properly inserted, and the total voltage is greater than 3.3V, the temperature will be displayed in the lower right corner, and the Celsius and Fahrenheit degrees ℉ ℃ every 3 seconds automatically switch once.
